Side Top Cover

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	15 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non ferrous Standard Tool	1	-	-	-

Table 3. Safety

DANGER

Strong Magnetic Field!

Ferrous materials can become dangerous projectiles in the presence of the magnetic field Produced by the Signa Magnet.

Do not Bring any ferromagnetic tools or equipment into the magnet room.

Remove following covers.
- Side Middle Cover (Left)
- Side Cover(Left Rear)

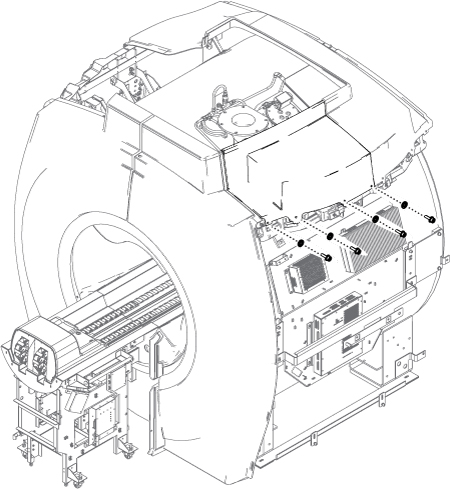

Remove the four (4) M10 screws at the base of the Left Top Cover.

Figure 1. Screws

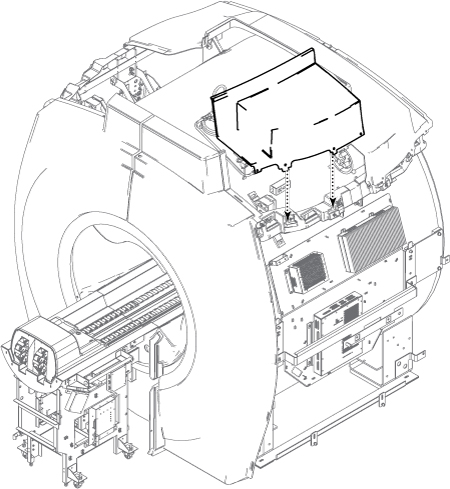

Remove the Left Side Top Cover.

Figure 2. Left Side Top Cover Removal
Installation is reverse order of removal.

No finalization steps.
