Rear Pedestal Cover Removal

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable15 minutesNot Applicable
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Non ferrous Standard Tool1---
Table 3. Safety

Procedure

  1. Remove 2 bolts from R and L rear pedestal covers.
  2. Remove R and/or L rear pedestal covers.

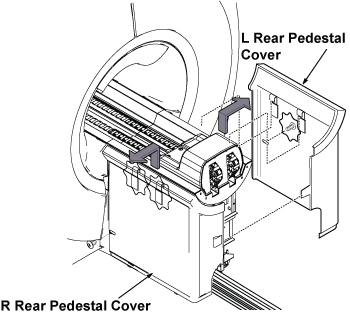

    Figure 1. Rear Pedestal Cover Removal
  3. Installation is reverse order of removal.

Finalization

No finalization steps.
