Regulator Box Replacement (Mobile Site)

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non Magnetic Tool Set	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
Regulator Box (Refer to Illustrated Parts)	1	-	-	-

Table 4. Safety

DANGER

STRONG MAGNETIC FIELD!

FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.

Do not Bring any ferromagnetic tools or equipment into the magnet room.

Warning

ELECTROCUTION HAZARD!

DANGEROUS VOLTAGES ARE PRESENT AROUND THE MAGNET SUBSYSTEM WHEN ENERGIZED.

LOCK AND TAG OUT POWER TO THE magnet room BEFORE STARTING WORK.

Table 5. Required conditions
Condition	Reference	Effectivity
System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.	-	-

Remove covers.
The Regulator Box is located on the wall.

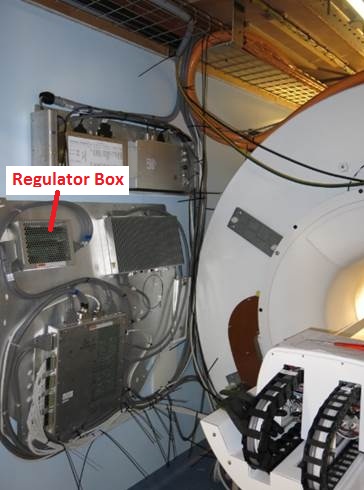

Figure 1. Regulator Box Location
Disconnect all connectors from Regulator Box.

Figure 2. Regulator Box Cable Removal

CAUTION

Regulator Box contains ferrous materials.

Do not bring it very close to magnet bore during replacement.

If it is very close to the magnet bore, it will be attracted to the bore with great force.

Loosen 4 screws and remove Regulator Box from Magnet Side Kit.
