Front Trim Ring

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable15 minutesNot Applicable
Table 2. Safety

Procedure

  1. Remove the front trim ring. The front trim ring is fixed by 7 poppers to enclosure.

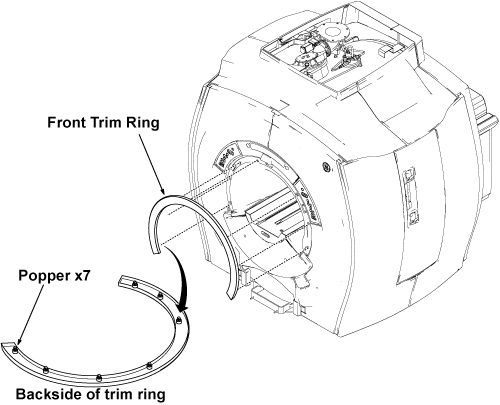

    Figure 1. Front Trim Ring Removal
  2. Installation is reverse order of removal.

Finalization

No finalization steps.
