Center Cover

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non ferrous M5 Allen wrench	1	-	-	-

Table 3. Safety

DANGER

Strong Magnetic Field!

Ferrous materials can become dangerous projectiles in the presence of the magnetic field Produced by the Signa Magnet.

Do not Bring any ferromagnetic tools or equipment into the magnet room.

Table 4. Required conditions
Condition	Reference	Effectivity
System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.	-	-

Remove following cover.
- Control panel (Center) (Refer to Magnet Enclosure Control Panel.)
Remove 2 screws fixing MIC.

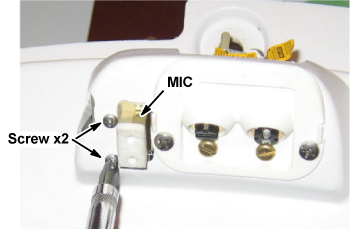

Figure 1. Removing MIC Fixing Screw
Remove four M6 screws and one M10 screw fixing center cover.

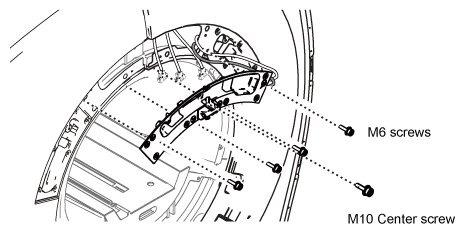

Figure 2. Remove Center Cover Fixing Screws
Disconnect JP1 of Alignment Light Cable (RUN M3525).
Cut tie-wraps of MIC cable and Alignment Light Cable.

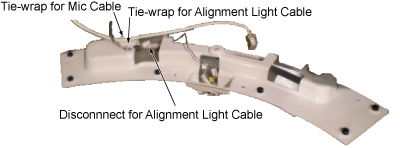

Figure 3. Front Cover Back View
Remove center cover.
Installation is reverse order of removal.

No finalization steps.
