• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA3039BF20GYZ
  • Topic ID: id_13107386 Version: 1.2
  • Date: Jul 5, 2019 10:46:04 PM

Magnet Enclosure Table of Contents

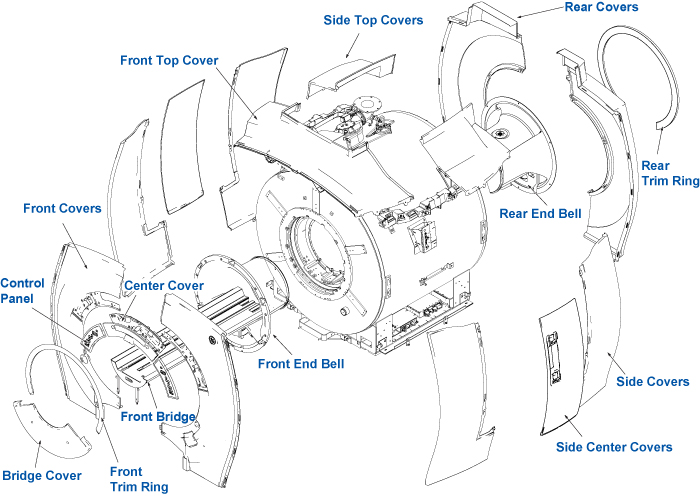

Figure 1. Click an Enclosure Cover to Go to Its Installation and Removal Procedures
Front Trim RingBridge CoverMagnet Enclosure Control PanelsFront Bridge AssemblyFront CoverFront End Bell RemovalFront Top CoverRight and Left Side Center CoverRight and Left Side CoverRear End Bell RemovalRear Trim RingRear CoverSide Top CoverCenter Cover
