Replacement of PAC (Mobile Site)

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable30 minutesNot Applicable
Table 2. Safety
Table 3. Required conditions
ConditionReferenceEffectivity

System Power must be turned OFF. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker.

--

About this task

The PAC is located on the wall.

Figure 1. PAC Location

Removal of PAC (Mobile Site)

Procedure

  1. Remove Cover.
  2. Remove front bracket with 2 screws.
    Figure 2. Remove front bracket
  3. Disconnect all the connectors around it.

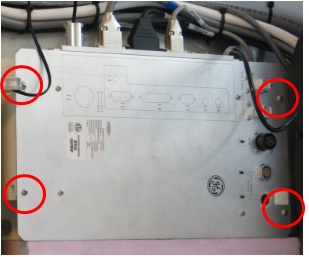

  4. Remove 4 screws attached to the PAC.
    Figure 3. Remove 4 screws

Install PAC (Mobile Site)

Procedure

  1. Place new PAC on base mount and fix it with four screws.
  2. Connect all the cables.
  3. Fix the cables with tie-wraps.
  4. Fasten it with belt.
