SIGNA MR355 / SIGNA MR360
Service Manual
5856356-3EN Revision 5.0
Basic Service Documentation. Copyright General Electric Company.
Object ID: 00000018WIA30F60030GYZ
Topic ID: id_13107107 Version: 1.3
Date: Jul 6, 2019 12:17:30 AM

Gear Belt

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
2	Not Applicable	60 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non ferrous Phillips screwdriver	1	-	-	-
Non ferrous Flathead screwdriver	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
46-282388P3 Gearbelt, .375-in Pitch, 1.00-in Wide, 19.50-ft Long	1	-	-	-

Table 4. Safety

Warning

FERROUS MATERIAL HAZARD!!

THE PULLEY ASSEMBLY CONTAINS PARTS MADE WITH FERROUS COMPONENTS. HOLDING THIS ASSEMBLY TOO CLOSE TO THE MAGNET BORE WILL FORCIBLY ATTRACT IT TO THE MAGNET.

TO PREVENT POSSIBLE BODILY INJURY, OR DAMAGE TO COMPONENTS, REMOVE THE ASSEMBLY DIRECTLY, NOT MOVING IT IN THE MAGNETIC FIELD MORE THAN IS NECESSARY.

Procedure

Warning

cutting the gear belt outside of magnet Room.

Cut the new Gear Belt length to 19.0ft (594cm).

Move the LPCA to the rear end of the rear pedestal and undock the patient table.
Detach the cradle from the LPCA.
System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.
Remove following covers.
- R/L Rear pedestal covers (Refer to Rear Pedestal Cover.)
- LPCA cover (Refer to LPCA Cover Removal.)
Release drive belt tension by flipping lever under rear pedestal.

Figure 1. Belt Tension Arm

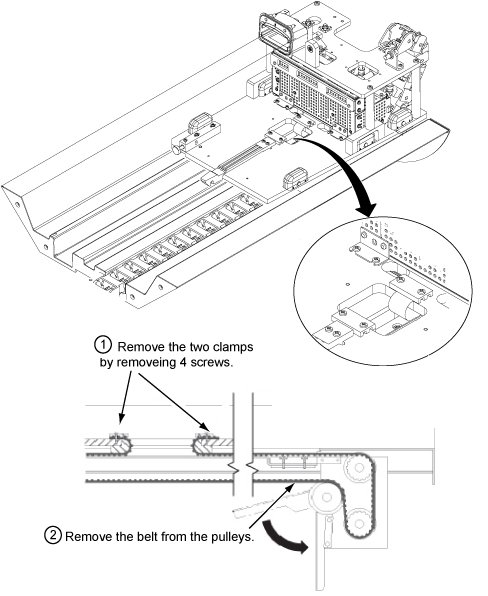

Remove the two belt clamps of from LPCA. Refer to illustration. (see Figure 2)
Remove the belt from the pulleys of rear pedestal.

Figure 2. Belt Removal

Note:
When withdrawing the belt, bind the new belt at the end with tape.
Remove the old gear belt.
Reinstall gear belt by reverse order of removal.

Finalization

Procedure

Verify that Cradle moves in and out fully and smoothly.
Perform Signal to Noise - Head Scan.
