Front Top Cover

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable15 minutesNot Applicable
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Non ferrous Standard Tool1---
Table 3. Safety

Procedure

  1. Remove following assembly and covers.
  2. Remove the three (3) M10 x25mm screws and M10 Nylon flat washers on each side of the Front Top Cover.

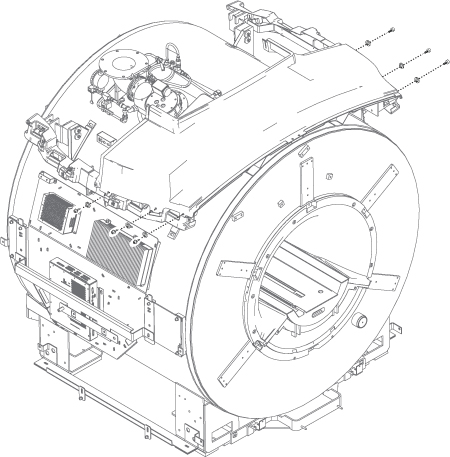

    Figure 1. Remove screws and washers
  3. With one person holding each side, slide the Front Top Cover toward the rear far enough to lift it off.

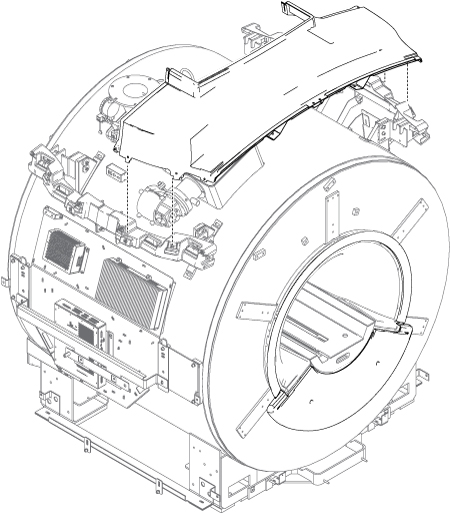

    Figure 2. Side Cover Removal
  4. Installation is reverse order of removal.
  5. Screw the adjusting screw to touch on the magnet.

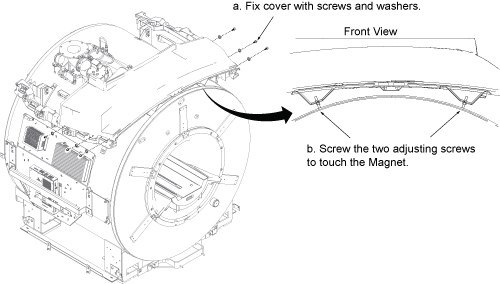

    Figure 3. Adjusting screws

Finalization

No finalization steps.
