Prerequisites
Note: Please check the part number when you order the FRU.
Table 1. Personnel requirements| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | Not Applicable | 15 minutes | Not Applicable |
Table 2. Tools and test equipment| Item | Quantity | Effectivity | Part number | Manufacturer |
|---|
| Non ferrous Standard
Tool | 1 | - | - | - |
Table 3. Safety
| DANGER |
|---|
 | Strong Magnetic Field! Ferrous materials can become dangerous projectiles in the
presence of the magnetic field Produced by the Signa Magnet. Do not Bring any ferromagnetic tools or equipment into
the magnet room. |
|
Procedure

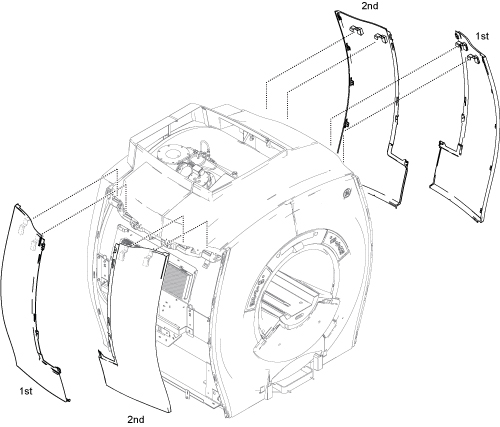

- Remove Side Middle Cover(Left
or Right).

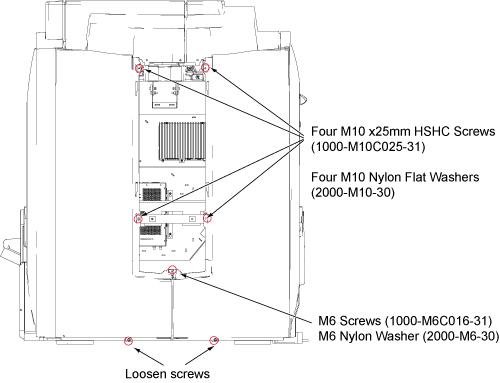

- Remove the screws of side cover as shown.
Note:
The illustration is left side cover. The right side cover
is same as left side cover.
Figure 1. Screw
- Lift the cover up and bring it backward to remove the cover.
Figure 2. Side Cover Removal
- Installation is reverse order of removal.
Finalization
No finalization steps.
