Replacing a dock pedal spring

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	10 minutes	-


Replacement parts
Item	Quantity	Part number	Manufacturer
Wire Spring	As required	5448742	-


Required conditions
The dock cover is removed.

Warning

Ferrous material hazard

The table dock components are ferrous and can become dangerous projectiles within the magnetic field.

The dock must be removed from the magnet room prior to removing any parts from the dock.

CAUTION

Possible component damage

The dock pedal spring may break if too much force is applied to it during installation.

Insert the spring into only one pedal at a time.

Do not bend the spring to insert it into both pedals at the same time.

About this task

The procedure applies to both the up and down pedal springs.

Procedure

Remove each end of the spring from the pedal on both sides of the dock. The spring is held in place by spring tension.

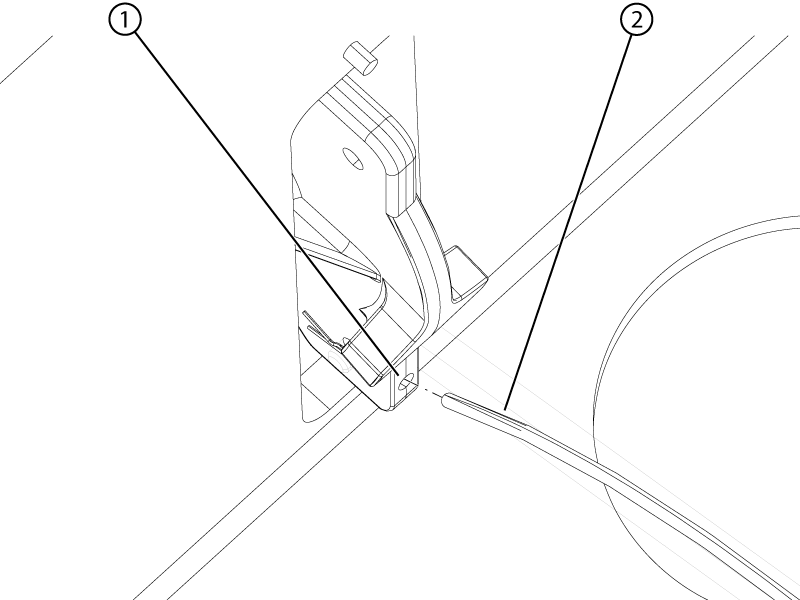

Figure 1. Dock pedal spring
1 Dock pedal hole
2 Dock pedal spring
Insert one end of the new spring into the hole in one of the dock pedals.
Grasp the other end of the spring approximately one inch from the end and insert it into the hole in the opposite side dock pedal.
