Removing and installing the magnet enclosure covers

Provides removal and installation instruction for all magnet enclosure covers.

About this task

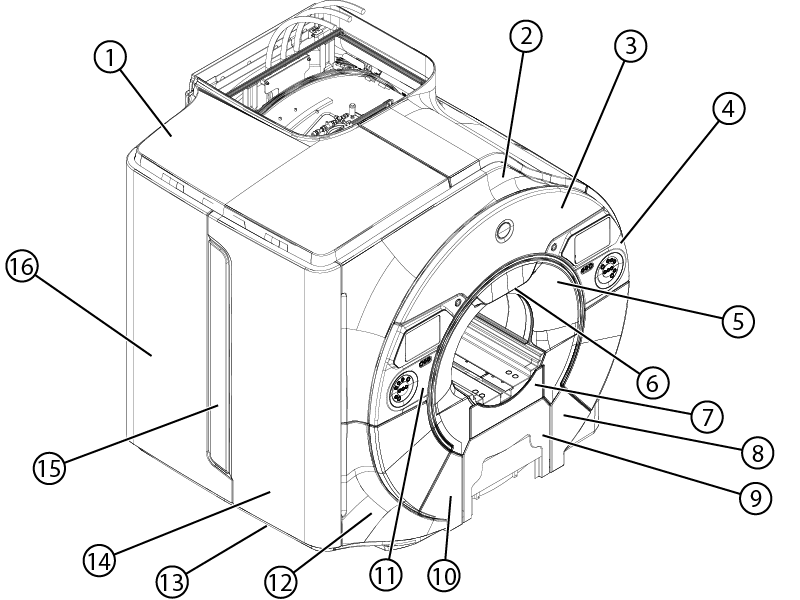

Figure 1. Front and left-hand magnet enclosure covers
1Upper service access panelRemoving the magnet upper service access panelInstalling the magnet upper service access panel
2Left-hand upper front coverRemoving the magnet left-hand upper front coverInstalling the magnet left-hand upper front cover
3Magnet front coverRemoving the magnet front coverInstalling the magnet front cover
4Right control panel cover Removing the magnet left and right control panel coversInstalling the magnet left and right control panel covers
5Front endbellRemoving the front endbellInstalling the front endbell
6Laser lensRemoving the laser lensInstalling the laser lens
7Bridge coverRemoving the bridge coverInstalling the bridge cover
8Right-hand lower access panelRemoving the magnet left- and right-hand lower access panelsInstalling the magnet left- and right-hand lower access panels
9Dockable table interface coverRemoving the dockable table interface coverInstalling the dockable table interface cover
10Left-hand lower access panelRemoving the magnet left- and right-hand lower access panelsInstalling the magnet left- and right-hand lower access panels
11Left control panel coverRemoving the magnet left and right control panel coversInstalling the magnet left and right control panel covers
12Left-hand lower front coverRemoving the magnet left-hand lower front coverInstalling the magnet left-hand lower front cover
13Service access ventRemoving the magnet service access ventInstalling the magnet service access vent
14Front service access panelRemoving the magnet front service access panelInstalling the magnet front service access panel
15Service access trimRemoving the magnet service access trimInstalling the magnet service access trim
16Rear service access panelRemoving the magnet rear service access panelInstalling the magnet rear service access panel

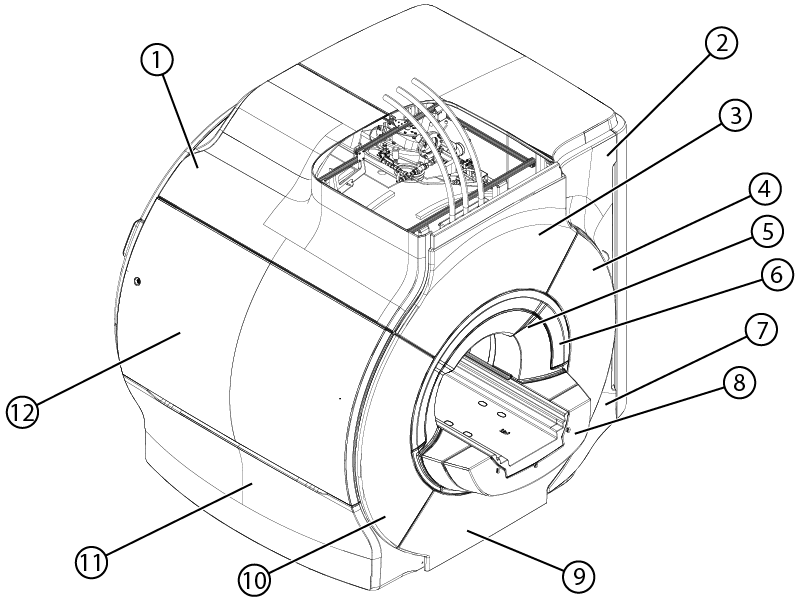

Figure 2. Rear and right-hand magnet enclosures
1Right-hand top coverRemoving the magnet right-hand top coverInstalling the magnet right-hand top cover
2Left-hand upper rear coverRemoving the magnet left-hand upper rear coverInstalling the magnet left-hand upper rear cover
3Rear cable coverRemoving the magnet rear cable coverInstalling the magnet rear cable cover
4Left-hand rear coverRemoving the magnet left-hand rear coverInstalling the magnet left-hand rear cover
5Rear endbellRemoving the rear endbellInstalling the rear endbell
6Rear trim ringRemoving the magnet rear trim ringInstalling the magnet rear trim ring
7Left-hand lower rear coverRemoving the magnet left-hand lower rear coverInstalling the magnet left-hand lower rear cover
8Rear bridge coverRemoving the rear bridge coverInstalling the rear bridge cover
9Rear bridge inner coverRemoving the rear bridge inner coverInstalling the rear bridge inner cover
10Right-hand rear coverRemoving the magnet right-hand rear coverInstalling the magnet right-hand rear cover
11Right-hand bottom coverRemoving the magnet right-hand bottom coverInstalling the magnet right-hand bottom cover
12Right-hand center coverRemoving the magnet right-hand center coverInstalling the magnet right-hand center cover
