SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30F95350GYZ
Topic ID: id_2020464 Version: 1.10
Date: Jul 7, 2021 3:51:54 PM

Disconnecting the Digitized Per Pin (DPP) dock cables

Procedure

Disconnect the following cables:

Table 1. Dock cable connections
Dock cable	Magnet cable	Location
EOT Switch	M3507	End of travel switch
LONG DRV MTR PWR	M3311	Table Input/Output (IO) bracket
M3313	M3313
LONG DRIVE MOTOR HALL COMM	M3315	Table IO bracket
PAC PWR	M3360	Table IO bracket
M3379	M3379	Table IO bracket
MNS TX P1 P-Port	TABLE-IO-J1	Table IO bracket connector (bottom side)
NB TX P2 P-Port	TABLE-IO-J2	Table IO bracket connector (bottom side)
FILTER TO PAC P2125	TABLE-IO-J7/J8	Table IO bracket connector (bottom side)
PATIENT ALERT SQUEEZE BULB	TABLE-IO-J9	Table IO bracket connector (bottom side)
MEMS PWR P1	M3392	MEMS BNC power cable
MEMS POWER P2	M3392	MEMS BNC power cable
MEMS POWER P4	M3392	MEMS BNC power cable
MEMS POWER PE	M3392	MEMS BNC power cable
1-WIRE	MAG-RX DIST-J57	Magnet side electronics plate
M3370	MAG-SRI-J3	Magnet side electronics plate
FRONT MIC	MAG-SRI-J32	Magnet side electronics plate
REAR MIC	MAG-SRI-J31	Magnet side electronics plate
M3341	MAG-SRI-J20	Magnet side electronics plate
5798533	MAG-TIF-J1	Magnet side electronics plate
CRADLE POS ENC	MAG-TIF-J2	Magnet side electronics plate
LONG DRIVE MOTOR ENC	MAG-TIF-J3	Magnet side electronics plate
5V-DIGITAL	MAG-TIF-J6	Magnet side electronics plate

Disconnect the coil cables from the DPP receivers.
1. Loosen the captive fasteners securing the DPP receivers to the magnet.
2. Rotate the DPP receivers to access the bottom.
3. Disconnect the cables.

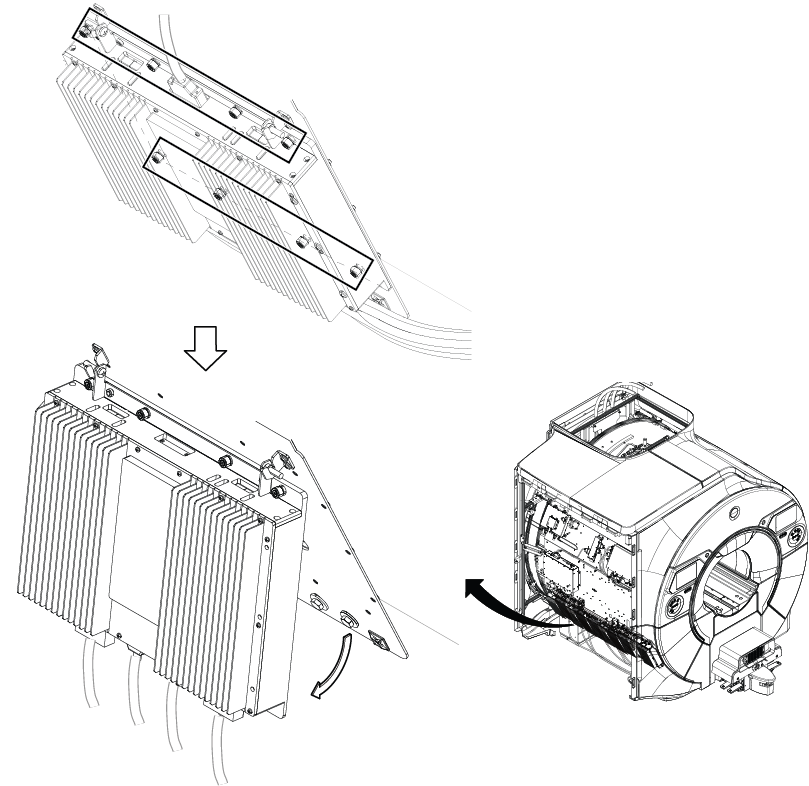

Figure 1. DPP receiver connection

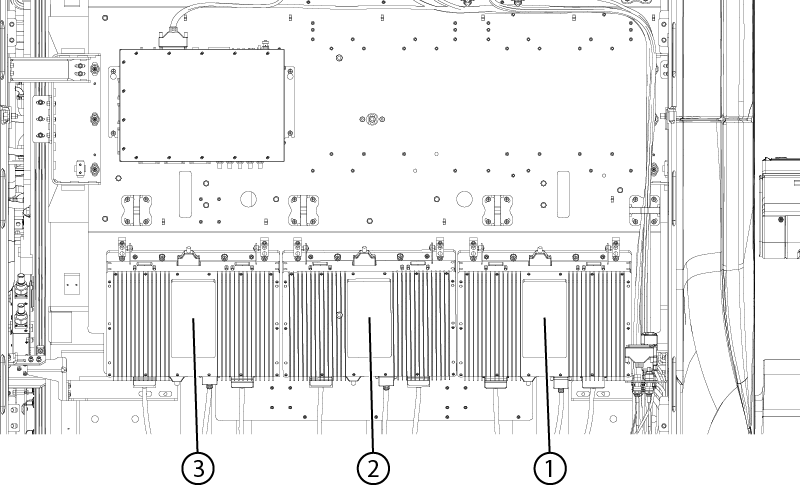

Figure 2. DPP receiver numbers

Table 2. DPP connections
Dock cable DPP connection
5946431 DPP 1
5946432 DPP 2
5946430 DPP 3
Place cables to the side of the magnet.
