Removing the ElectroMagnetic (EM) clutch

Removes the ElectroMagnetic (EM) clutch from the dockable table motor and EM clutch assembly.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-5 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set15112581-
Required conditions
The motor and EM clutch assembly is removed from the table.

Procedure

  1. Remove the four screws securing the clutch cover plate to the motor and clutch assembly.
    Figure 1. Electromagnetic clutch cover
    1Electromagnetic cover screw
    2Electromagnetic cover
  2. Remove the clutch cover plate.
  3. Mark the position of the motor in the motor and EM clutch assembly. This mark will be the starting point for belt tension.
    Figure 2. Motor position mark
  4. Loosen the four screws securing the motor to the motor and EM clutch assembly.
    Figure 3. Motor screws
    1Motor securing screws
    2Belt tension adjustment screw
  5. Loosen the belt tension adjustment screw to loosen the belt sufficiently to remove it.
  6. Remove the drive belt and discard it appropriately.

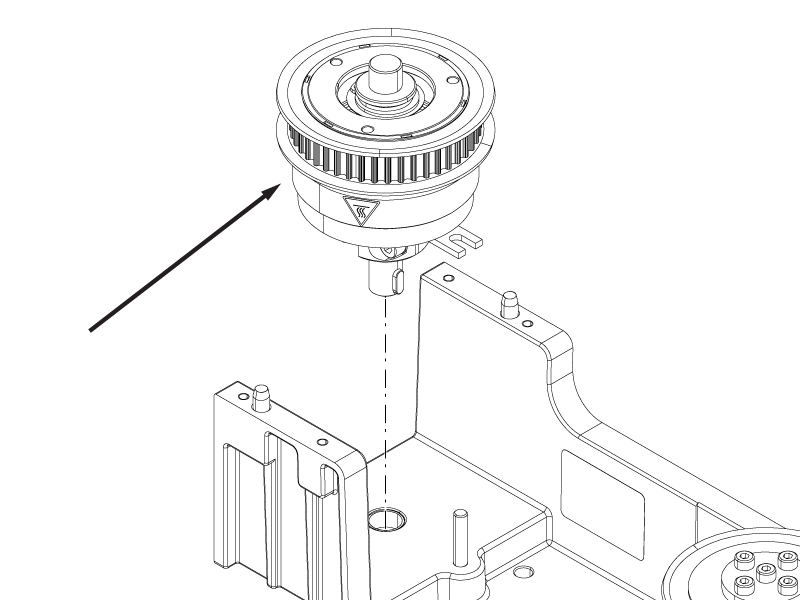

  7. Remove the clutch from the assembly.
    Figure 4. EM clutch
