Preparing the replacement ElectroMagnetic (EM) clutch

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set	1	5112581	-

Procedure

Loosen the clamp screw on the removed EM clutch.

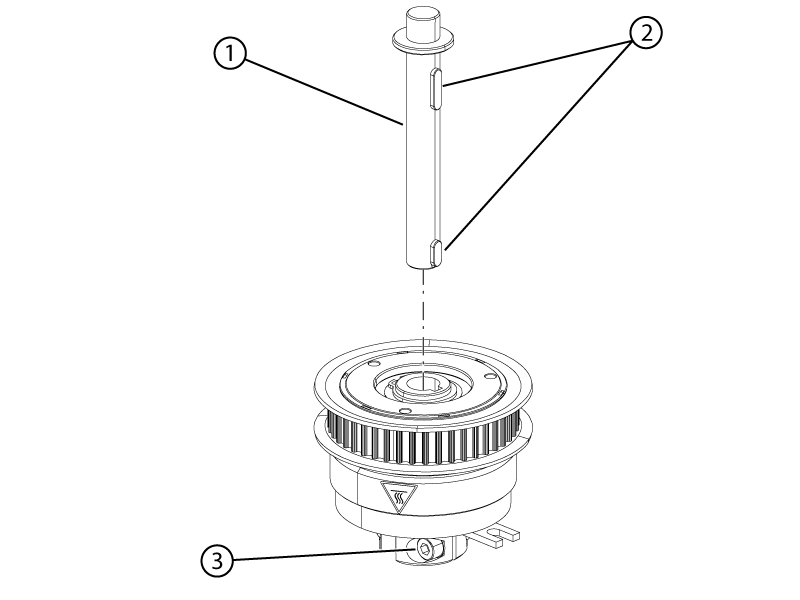

Figure 1. Electromagnetic clutch parts
1 Shaft
2 Keys
3 Clamp screw
Remove the shaft from the removed clutch.

Note: Make sure the large and small keys stay in the shaft. Reinstall any key that falls out.
Install the shaft into the new clutch fully to the end.
Tighten the clamp screw on the new clutch.
