• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30D6FF20GYZ
  • Topic ID: id_13106968 Version: 1.1
  • Date: Jul 6, 2019 12:17:30 AM

Control Board for XFD-PS

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable15 minutes35 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool1---
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
Control Board for XFD-PS (Refer to Illustrated Parts)1---
Table 4. Safety
Table 5. Required conditions
ConditionReferenceEffectivity

System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.

--

Procedure

  1. Remove L Upper Front Cover. Refer to SC Cover Removal.
  2. Disconnect all front connectors from control board.
  3. Loosen 2 screws of control board for XFD-PS.
  4. Open two extractor levers, and remove control board from XFD-PS.
    Note:

    The control board can be removed/inserted to the socket by lifting up a little.

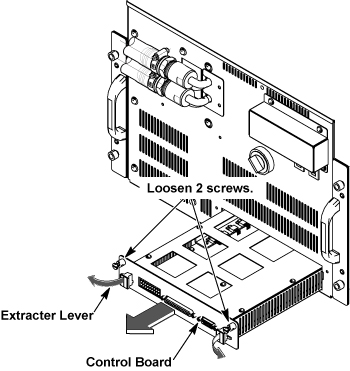

    Figure 1. control board
  5. Restore control board for XFD-PS by reverse order.
  6. Restore all front connectors to control board.
  7. Restore System Cabinet.

Finalization

  1. Restore the Power. Refer to System Cabinet PDU Main Breaker LOTO Procedure.
  2. Perform DQA Tool.
  3. Perform Signal to Noise - Head Scan.
