Exciter

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable30 minutes15 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool1---
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
Exciter (Refer to Illustrated Parts)1---
Table 4. Safety
Table 5. Required conditions
ConditionReferenceEffectivity

System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.

--

Procedure

  1. Remove L Upper Front Cover. Refer to SC Cover Removal.
  2. Disconnect all connectors from front panel of Exciter.
  3. Remove 2 screws, and slide Exciter out.

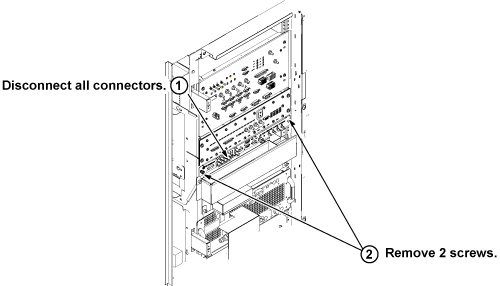

    Figure 1. Exciter Removal
  4. Withdraw Exciter.
  5. Place the rear of Exciter onto the ICN Duct, Hold the Exciter by left hand, and disconnect three connectors from rear of Exciter.

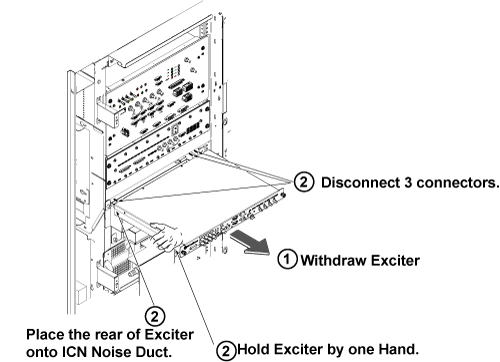

    Figure 2. Exciter Removal2
  6. Remove Exciter.
  7. Install Exciter by the reverse order of the removal.
    Note:

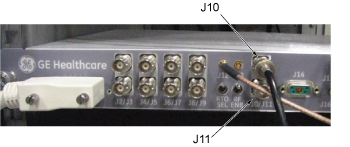

    Refer to the following illustration of J10 / J11 connector location.

  8. Restore System Cabinet.
