• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30922030GYZ
  • Topic ID: id_13106945 Version: 1.2
  • Date: Jul 5, 2019 11:49:10 PM

Top FAN Assy

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable30 minutes15 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool1---
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
Top FAN Assy (Refer to Illustrated Parts)1---
Table 4. Safety
Table 5. Required conditions
ConditionReferenceEffectivity

System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.

--

Procedure

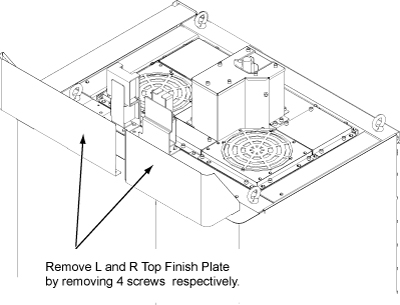

  1. Remove Top Finished Plates.
    Figure 1. Top Finished Plates

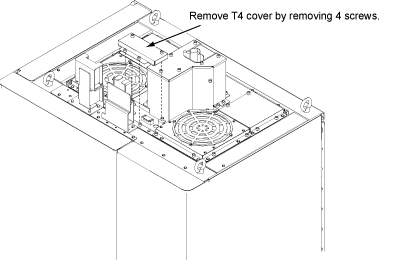

  2. Remove T4 cover by removing 4 screws.
    Figure 2. T4 cover

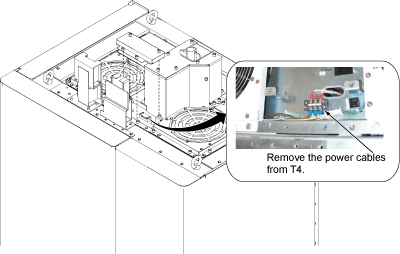

  3. Disconnect FAN Power cables from T4.
    Figure 3. Cables on T4.

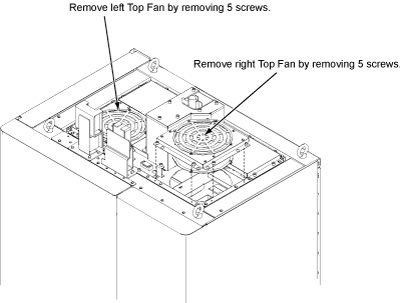

  4. Remove Right and Left FAN Assy.
    Figure 4. FAN Assy Removal
  5. Restore the new FAN Assy by reverse order of removal. Connect power cables to T4 according to the label on each cable.
