PS for PHPS Lite 2

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable30 minutes15 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool1---
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
PS for PHPS Lite 2 (Refer to Illustrated Parts)1---
Table 4. Safety
Table 5. Required conditions
ConditionReferenceEffectivity

System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.

--

About this task

Location of each Power Supply is as following illustration

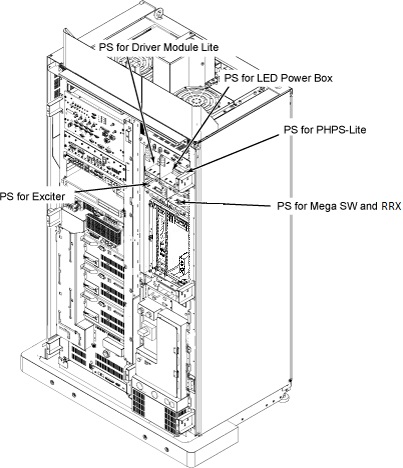

Figure 1. Location of Power Supply

Procedure

  1. Remove Front Cover. Refer to SC Cover Removal.
    Note:

    PS connectors are designed to be uniquely connected to the other end to avoid the mis-connection except Receiver and Exciter cable connectors.

  2. Disconnect the connectors which are routed from PS for PHPS Lite 2. If necessary, cut the tie wraps.
  3. Loosen 2 screws tightening power supply and chassis.
  4. Remove the PS for PHPS Lite 2 tray from System Cabinet.

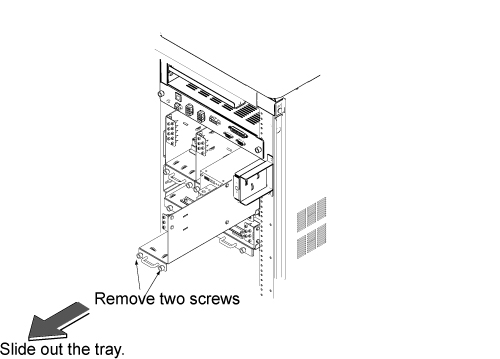

    Figure 2. PHPS Lite 2 power supply
  5. Restore new PS for PHPS Lite 2 tray by the reverse order of removal.
  6. Restore the system cabinet by the reverse order of the removal.
