SC Cover Removal

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable5 minutesNot Applicable

About this task

This procedure describes all of SC cover removal. Refer to the related cover removal only according to the replacement procedure.

L Cover: L Cover

R Cover: R Cover

Rear Cover (Magnet Room Side): Rear Cover (Magnet Room Side)

Water Manifold Access Cover: Water Manifold Access Cover

L Cover

Procedure

  1. Raise the handlebar on L Cover.
  2. Unlock 6 fasteners with the coin.
  3. Remove L Cover. Refer to Figure 1

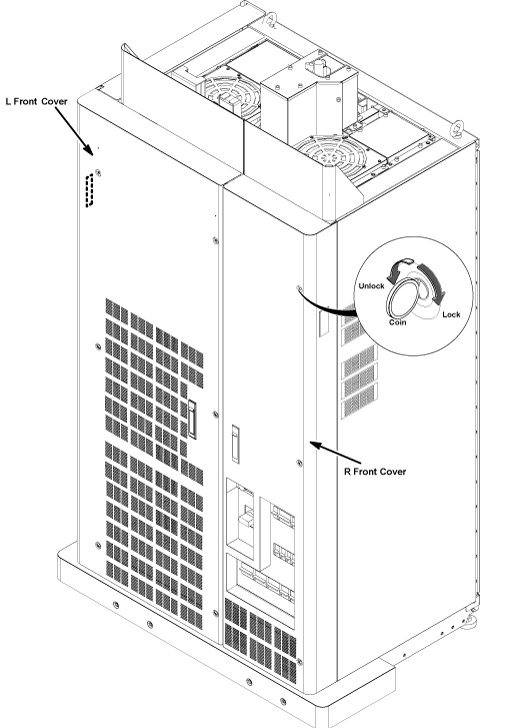

    Figure 1. SC Cover Removal

R Cover

Procedure

  1. Remove L Cover.
  2. Raise the handlebar on R Cover.
  3. Unlock 3 fasteners with the coin.
  4. Remove R Cover. Refer to Figure 1

Rear Cover (Magnet Room Side)

Procedure

Remove rear cover by removing 6 screws.

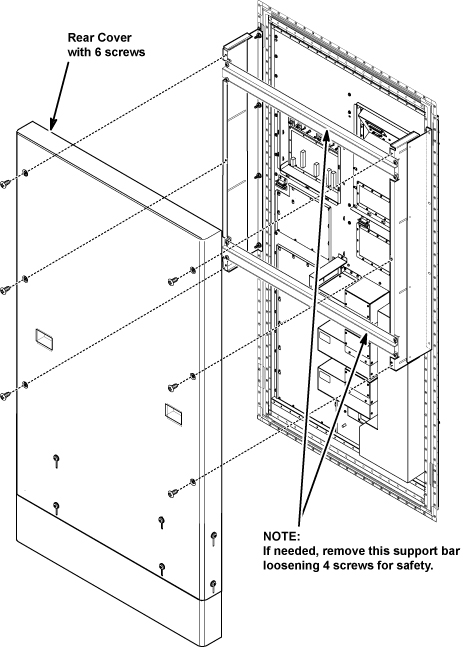

Figure 2. Rear Cover (Magnet Room Side)

Water Manifold Access Cover

Procedure

  1. Remove L Cover.
  2. Remove Water Manifold Access Cover by removing 2 screws. Refer to Figure 3

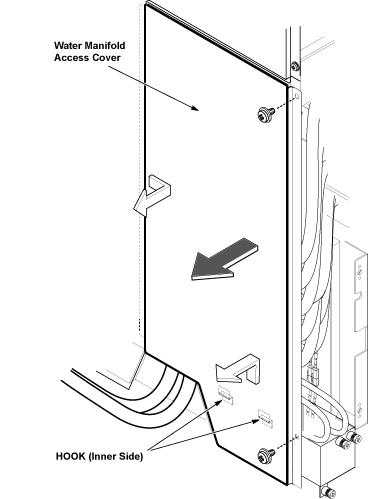

    Figure 3. Water Manifold Access Cover

Finalization

Finalization

No finalization steps.
