• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30371030GYZ
  • Topic ID: id_13106885 Version: 1.2
  • Date: Jul 5, 2019 10:46:04 PM

PHPS Lite 2

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable60 minutes15 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool1---
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
PHPS Lite 2(Refer to Illustrated Parts)1---
Table 4. Safety
Table 5. Required conditions
ConditionReferenceEffectivity

System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.

--

Procedure

  1. Remove L Upper Front Cover and R Upper Front Cover. Refer to SC Cover Removal.
  2. Disconnect all connectors from front panel of PHPS Lite 2.
  3. Remove 2 screws of front side.

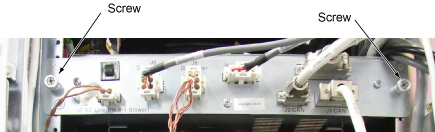

    Figure 1. PHPS Lite 2
  4. Slide PHPS Lite 2 forward, and remove PHPS Lite 2.

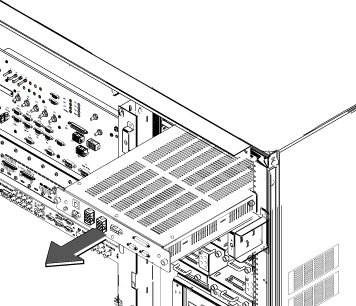

    Figure 2. PHPS Lite 2
  5. Restore PHPS-Lite 2 by reverse order of removal.
