Removing the dockable table Physiological Acquisition Controller (PAC)

Removes the Physiological Acquisition Controller (PAC) from the dockable table.

1. If it is not already undocked, undock the table and move it away from the magnet.
   important: Undocking the table disconnects the power to the Physiological Acquisition Controller (PAC). If the table is docked during this procedure, ISC LOTO is required.
2. Disconnect the following cables and pneumatic tube from the PAC:

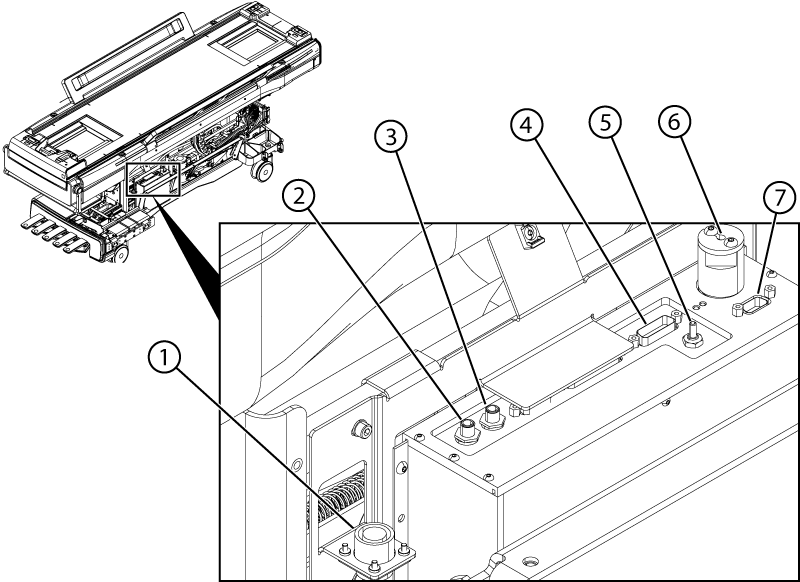

   Figure 1. PAC connections



   1	ECG extension cable	PAC ECG connector
   2	M3386	J6
   3	M3386	J5
   4	5946424	J2
   5	Resp tube	J3
   6	5946423	J1
   7	5946424	J9

3. Remove the four screws and four washers securing the PAC to the table.

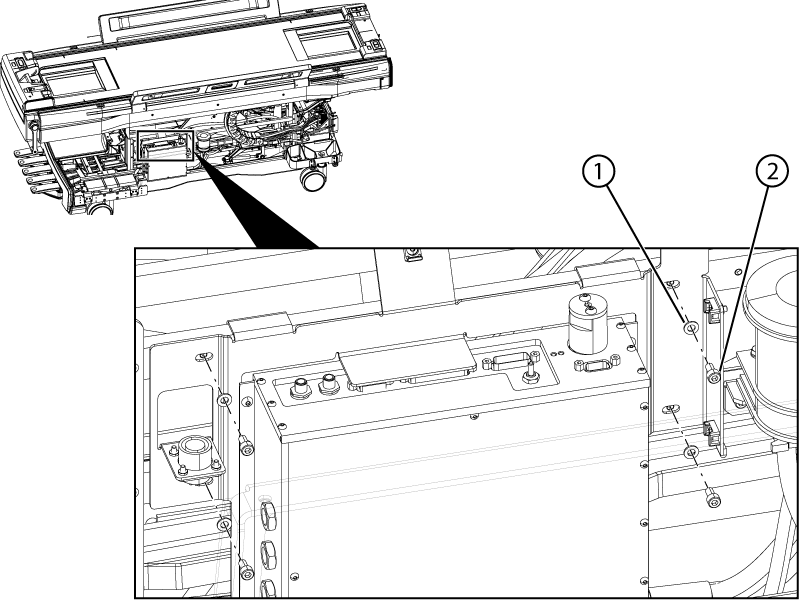

   Figure 2. PAC hardware



   1	Washer
   2	Screw

4. Cut cable ties securing cables to the PAC bracket.
5. Remove the PAC from the table.
