Fiber Optic Light Meter Kit Parts Breakdown
Fiber Optic Light Meter Kit (46-317830G1). The part number for the case, label and foam only is 46-317830G50). See items in Table 1 and Figure 1.
| Item | Description | Part Number | Quantity |
|---|---|---|---|
| 2 | Fiber Optic Light Meter, 400-1014NM | 46-317827P1 | 1 |
| Fiber Optic Adapter Assembly For FOT - 21 Meter | Supplied With Item 1 46-317827P1 | 1 | |
| Spare +9V Battery | Supplied With Item 1 46-317827P1 | 1 | |
| FOT - 21 Fiber Optic Light Meter Instruction Manual | Supplied With Item 1 46-317827P1 | 1 | |
| 3 | ST Male - CFC Male (1 ft long) | 46-317849P1 | 1 |
| 4 | ST Male - ST Male (1 m long) | 46-307584P3 | 1 |
| 5 | ST Male - SMA Male (1 m long) | 46-317847P1 | 1 |
| 6 | ST Male - HP Male (1/2 m long) | 46-317848P1 | 1 |
| 7 | HP Simplex Male Latching - Simplex Male Latching (1/2 m long) | 46-307564P4 | 1 |
| 8 | HP Simplex/Duplex, Latching/Nonlatching Adapter For FOT-21 Meter | 46-320033G1 | 1 |
| 9 | CFC (Female - Female) Simplex Bulkhead Connector | 46-317863P1 | 1 |
| 10 | Fiberoptic Cable Splice Amp | 46-287713P1 | 1 |
| 11 | STC (Female - Female) Simplex Bulkhead Connector | 46-317863P2 | 1 |
| 12 | Use G50 Case for Service Replacement Blow Molded, 12-11/16 × 8-15/16 × 3-11/16 | 46-301453P3 | 1 |
| 13 | Foam for Case Top, Eng. Tool Kit | 46-307769P1 | 1 |
| 14 | Foam for Case Bottom | 46-317828P1 | 1 |
| 15 | Stick-On with Project~S Name | 46-317829P1 | 1 |
| 16 | Fiber Optic Adapter Assembly For F.O. Photoplethysmograph Probe | 46-320710G1 | 1 |

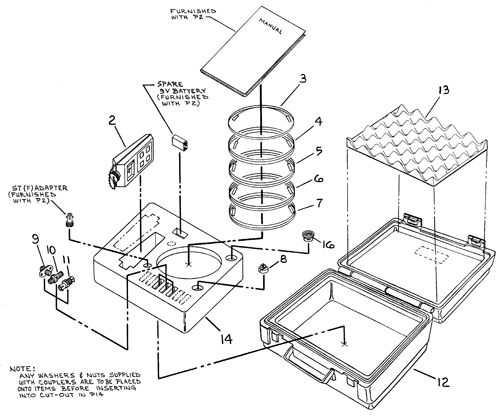

Figure 1. Fiber Optic Measurement Kit Config.
