Patient table upper bellows and lower base side cover removal
Prerequisites
| Personnel requirements | |||
|---|---|---|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
| 1 | - | 5 minutes (each) | - |
| Tools and test equipment | |||
|---|---|---|---|
| Item | Quantity | Part number | Manufacturer |
| Non-magnetic Service Tools | 1 |
5112581 |
- |
The Upper Bellows, an accordion style cover, can be positioned up or down depending on the type of servicing needed. The Lower Base Side Cover is a solid single cover that runs the length of the lower chassis from the front caster assembly to the rear caster assembly on each side.
To fasten the upper bellows
Procedure
- Depending on servicing needs, the Patient Table may be docked or undocked.
- Remove four screws (two at front, two at rear) that connects the bottom end of the Upper Bellows to the top of the Lower Base Side Cover.

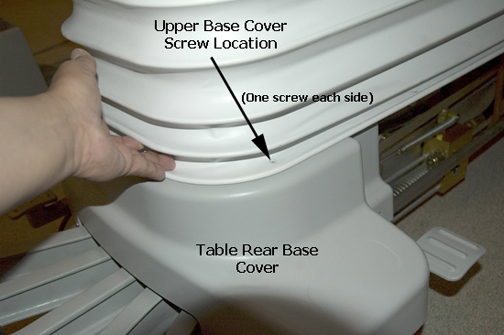

Figure 1. Upper bellows screws
- To fasten the upper bellows in an up position, lift the bellows from the bottom of both sides and use the Velcro straps located on the inside of the bellows to secure the cover in place.
To remove the lower base side cover
Procedure
- Remove four screws (two at front, two at rear) that connects the bottom end of the upper bellows to the top of the lower base side cover.note: Once you remove the four screws from the bottom of the Upper Bellows, you may or may not want to fasten the Upper Bellows in an up position with the Velcro straps.
- On the left or right side of the table, remove two screws from the lower base side cover.

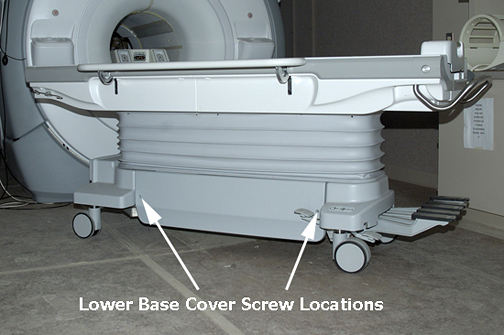

Figure 2. Lower base side cover screws
- Lift the lower base side cover off of front and rear guide studs on the front and rear base covers.

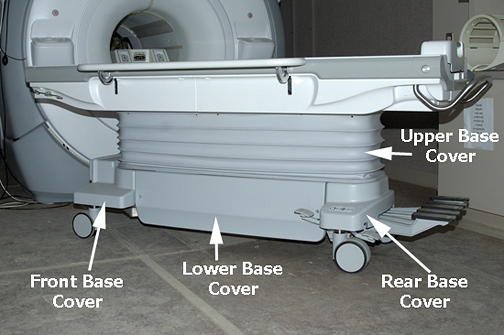

Figure 3. Front and rear base covers
