Bore Light Replacement

Prerequisites

Table 1 Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2 Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non-Magnetic Service Tool Kit	1	-	5112581	-

Table 3 Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
LED Bore Light Source	1	-	5173982	-

Overview

This document contains the procedures for replacing the LED light source used for the fiber optic bore lights.

Follow all LOTO procedures by turning off the applicable breaker in the PDU. See the MR Service Safety Manual, PN 5452735.
Remove rear pedestal side cover screws, and remove the side covers.

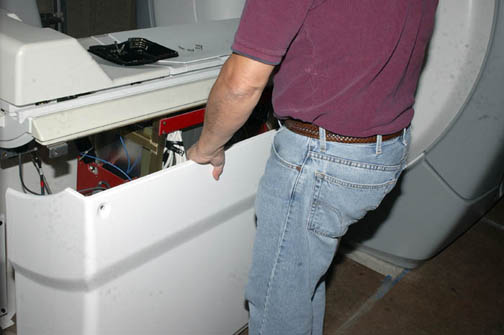

Figure 1. Remove Rear Pedestal Side Cover
Loosen the 2 hand tightened screws that secure the fiber optic cables, and remove the cables.

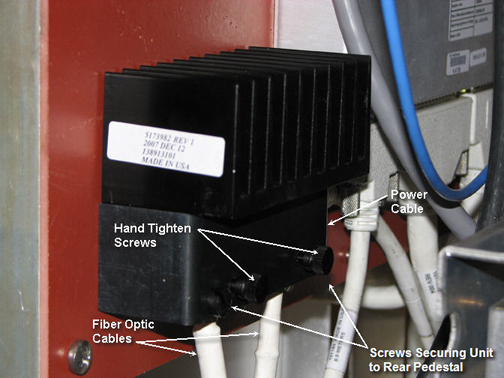

Figure 2. LED Bore Light Module
Disconnect the power cable on the right side of the module.
Remove 2 screws securing the bore light module to the rear pedestal panel, and remove the module.
Attach the replacement module, and reconnect the power cable and fiber optic cables.
Put the rear pedestal side covers back in place and secure their screws.
Remove LOTO and restore power by turning on the applicable breaker in the PDU. See the MR Service Safety Manual, PN 5452735.

No finalization steps.
