Remove the DVD drive from the host computer.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 15 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Screwdriver | 1 | - | - |
| ESD Mat | 1 | - | - |
| ESD Strap | 1 | - | - |
| 4 mm Hex Key Wrench | 1 | - | - |
| Required conditions |
|---|
| To prevent damage, do not remove the new DVD drive from its antistatic packaging until you are ready to install it. |
|
Use an antistatic wrist strap and mat while performing this procedure to prevent electrostatic discharge (ESD).
|
| Access to both the front and rear of the operator console is required. Move the console away from walls and remove obstacles in the room. |
Procedure
- Remove the side cover.

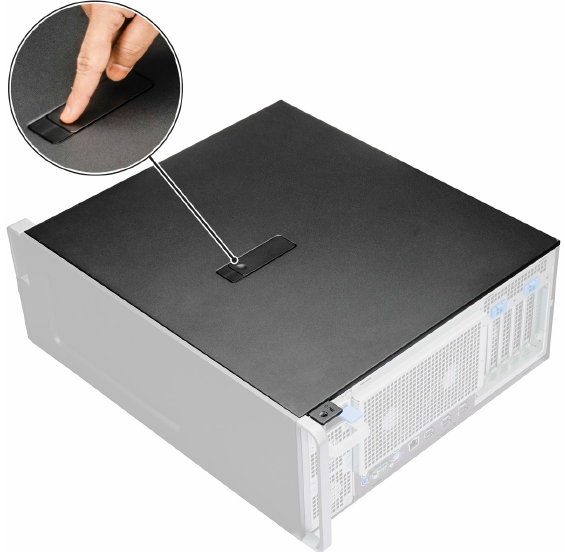

- Press the latch.

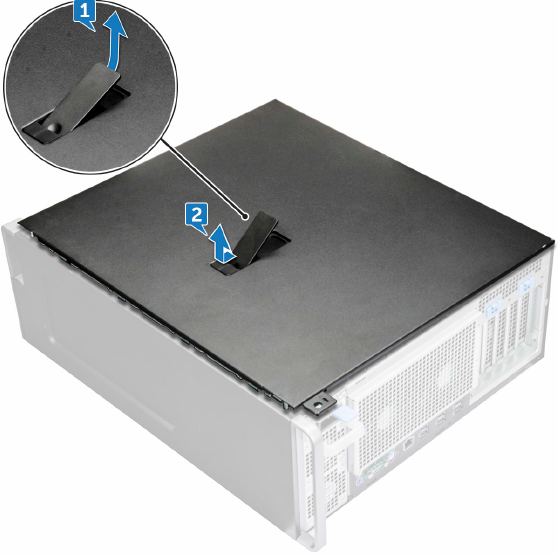

- Pull the latch [1] upward and rotate it to release the cover [2].
- Remove the DVD drive.

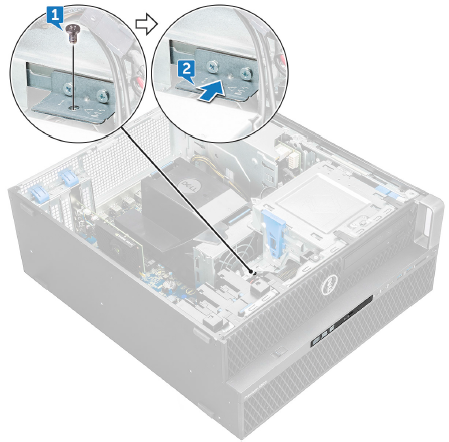

- Remove the screw [1] that secures the DVD drive and push the DVD drive [2] out of the chassis.

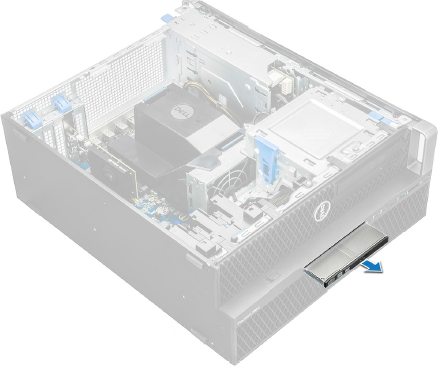

- Slide the DVD drive out of the host PC.
