HUB Replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	20 minutes	10 minutes

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Standard Screw Driver	1	-	-	-

Table 3. Safety

DANGER

FATAL ELECTRIC SHOCK HAZARD!

TO PREVENT POSSIBLE FATAL ELECTRIC SHOCK, Shutdown the Host computer and perform Lockout/Tagout of the GOC BEFORE STARTING THIS PROCEDURE.

Procedure

Shutdown application software on the Host computer. Lockout/Tagout power sources. Refer to Lockout/Tagout of the GOC.
Remove the service cover and disconnect ground cable

Figure 1. Remove the service cover and disconnect ground cable
Remove all cables that are connected to the HUB.
Remove the Velcro tapes from the HUB.

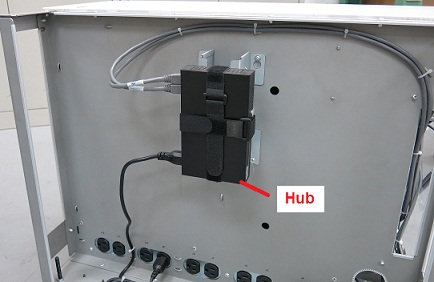

Remove the HUB from the HUB support bracket of GOC.

Figure 2. Remove Hub
Restore GOC by reverse order of removal.

Finalization

Restore power to the GOC.
Open C Shell and ping ip address in the hospital. Check that result of ping test is ok.
Perform Signal to Noise - Head Scan.
