Dell T5810 Lower Level FRU Replacement

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1--2 hours
Tools and test equipment
ItemQuantityPart numberManufacturer
Standard FE toolkit1--
ESD mat and wrist strap1--
Consumables
ItemQuantityPart numberManufacturer
GE Equipment Maintenance sticker1See FRU manual-
Replacement parts
ItemQuantityPart numberManufacturer
DVD drive1See FRU manual-
SSD2See FRU manual-
Battery, Type 2032 Coin, 3 V, Lithium1See FRU manual-
Required conditions
Access to both the front and rear of the operator console is required. Move the console away from walls and remove obstacles in the room.

About this task

This procedure describes the steps to replace the following lower-level FRUs (LLFRUs) in the Dell T5810 host PC:
  • DVD drive
  • Solid State Drive (SSD)
  • CMOS battery

Preparing the workstation

Procedure

  1. (For SSD Replacement) Ask the customer to archive all images to an external storage device (PACS, DVDs, and so on).
  2. Do a SaveInfo.
  3. Close any PC applications and power down the GOC .

    The GOC supports an optional UPS. Confirm your site’s configuration.

  4. Remove the host PC from the GOC. See Dell T5810 Computer Replacement.
  5. Lift up the cover release latch and lift the cover upward to a 45-degree angle, and remove it from the host PC.

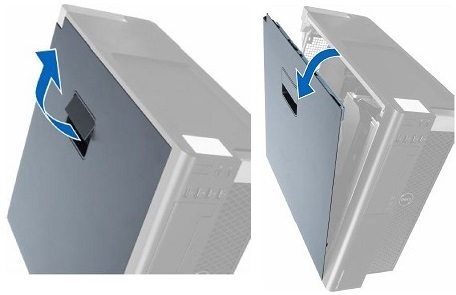

    Figure 1. PC cover removal

Replacing LLFRUs in Dell T5810 host PC

Replacing DVD drive

Procedure

  1. To prevent damage, do not remove the new DVD drive from its antistatic packaging until you are ready to install it.
  2. Disconnect the data and power cables from the DVD drive.
    Figure 2. Power/cata cable on rear of DVD crive
  3. Press on the clasp to release the latch holding the cables on the side of the cage.
    Figure 3. Release latch
  4. Lift the release latch on top of the cage, and slide the cage out from the compartment.

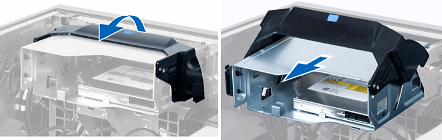

    Figure 4. DVD drive cage removal
  5. Remove the four screws that secure the DVD drive to the cage.

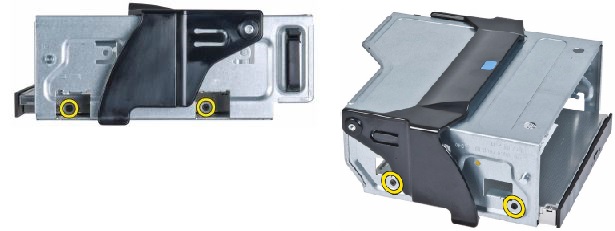

    Figure 5. Location of screws
  6. Remove the DVD drive from the cage.

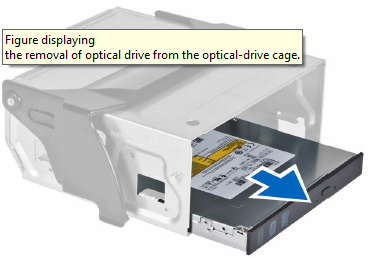

    Figure 6. DVD drive removal
  7. Install the new DVD drive in reverse sequence, and connect the power and data cables.
    Note: When restoring the DVD Drive cage, lift the release latch and slide the pins on the both side of cage along the slot till they reach to the end. Then, close the release latch.

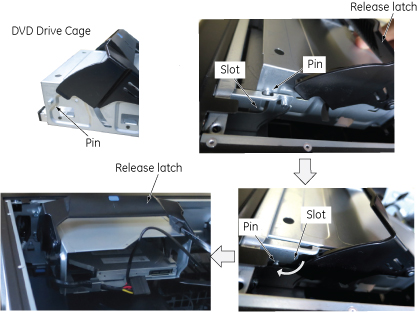

    Figure 7. Tips to restore DVD drive cage
  8. Continue to Reinstalling host computer in GOC below.

Replacing SSD

About this task

The Dell T5810 has two SSDs, and they have the same replacement procedure.

Procedure

  1. Disconnect the power supply and data cables from the SSD.

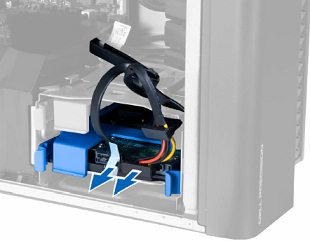

    Figure 8. SSD cables removal
  2. Press in gently on both sides of the bracket and slide the SSD carrier out of the slot.

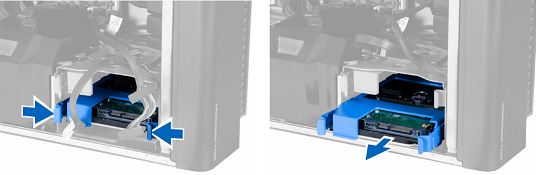

    Figure 9. SSD carrier removal
  3. Remove the bracket from the SSD carrier.

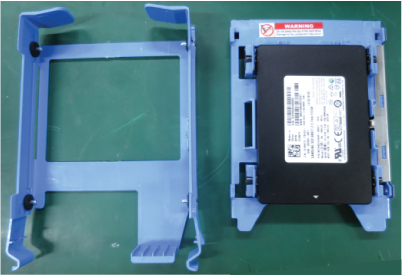

    Figure 10. Bracket and carrier
  4. Press on the two tabs on one side of the SSD carrier to separate the pins from the SSD and remove the SSD from the carrier.

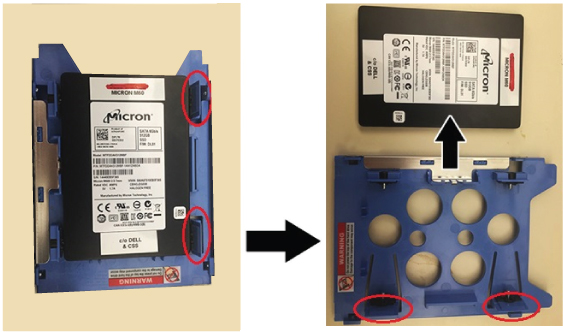

    Figure 11. SSD and carrier
    Note: You can twist the carrier to separate the pins more easily.
    Even though the pin is long and the tab is hard, it is possible to detach the pin from the SSD as illustration below.

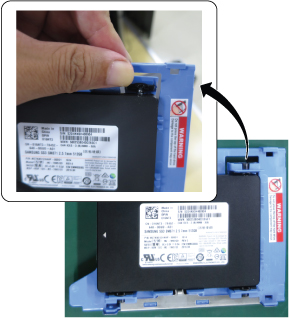

    Figure 12. Pin removal
  5. Install the new SSD in reverse sequence.
    There are no jumpers required to configure the disk drives on the Dell T5810. Connect the power cables to the SATA connectors labeled on the board as HDD1 and HDD0.

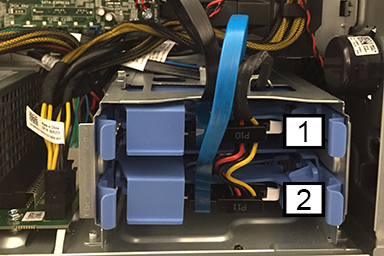

    Figure 13. Hard Drives with wiring harness connections
    1HDD1 - DATASSDImage data
    2HDD0 - Boot DriveSSDApplication software
  6. Perform a disk wipe on all applicable hard drives in the old PC. See the latest revision of the Disk Management Tool Service Manual , PN 5500610-1EN available from the online documentation library.
  7. Continue to Reinstalling host computer in GOC below.

Replacing CMOS battery

Procedure

  1. Lay the workstation on its side with the system board facing up.
  2. Remove the bracket that holds the DVD Drive (refer to Replacing DVD drive),
  3. Push the tab and lift the long black cover.

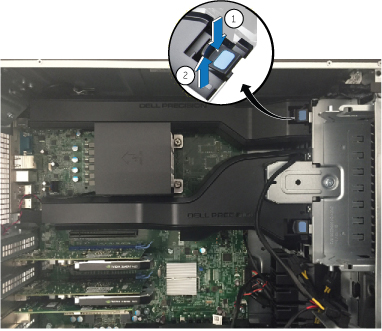

    Figure 14. Remove long bracket
  4. Find the CMOS battery on the Dell computer system board.

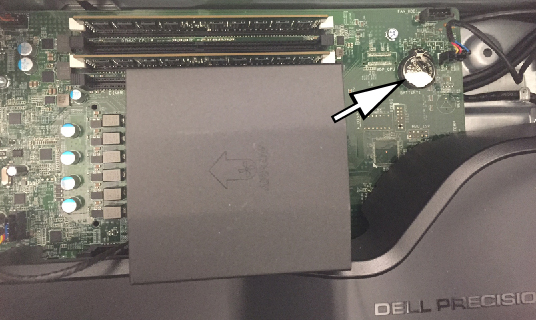

    Figure 15. CMOS battery location
  5. Move the latch away from the battery to remove the battery from the socket.
    If necessary, you can use a small screwdriver to remove the battery.
  6. Let the computer sit for a minimum of 3 minutes to let the CMOS memory clear.
  7. Install the new battery, and push the battery down until the release latch moves back into place and secures it. The battery’s positive (+) side should point up.
  8. Continue to Reinstalling host computer in GOC below.

Reinstalling host computer in GOC

Procedure

  1. Recover the left side cover of the host computer.
  2. Reinstall host computer to the GOC in reverse order of removal.
  3. Recover the GOC left side cover.
  4. Confirm that all cable connections to the GOC and host PC are tight.
  5. Get a GE Equipment Maintenance sticker, and write today’s date on the sticker. Put the sticker on the GOC where it is easily seen.

Finalization

Prerequisites

FRU Item Replaced Actions to be performed
DVD driveReboot and confirm that the DVD drive can read and write images.
Hard driveReload the software.
CMOS battery
  • Update the customized BIOS settings.
  • Shut down the PC and turn off the power.
  • Re-apply the power and restart the PC.
  • Make sure the date/time is correct (CMOS battery properly keeps date/time).

Procedure

  1. Note: Make sure the host PC front panel power LED is illuminated as a steady blue signal.
    (For SSD Replacement) Load software and applications onto the operating system.
  2. Run a goodbye scan.
  3. Make sure all customer functions are operational (auto voice, filming, network, archive).
