Leak Sensor 2 (Bottom)

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	60 minutes	15 minutes

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Standard Tool	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
Leak Sensor 2 (Bottom) (Refer to Illustrated Parts)	1	-	-	-

Table 4. Safety

Warning

ELECTROCUTION HAZARD!

DANGEROUS AND OR FATAL VOLTAGES ARE PRESENT IN THE ENERGIZED CABINET.

Follow LOTO steps as given in first section of this document to disable and verify safe voltage levels.

Table 5. Required conditions
Condition	Reference	Effectivity
System Power must be turned OFF. Refer to Lockout/Tagout for PDU.	-	-

Remove L Upper Front Cover. Refer to SC Cover Removal.
Notice

Pay attention for leak sensor not to be wet when pulling out the XFD-PS.
Remove XFD-PS. Refer to XFD-PS Replacement.

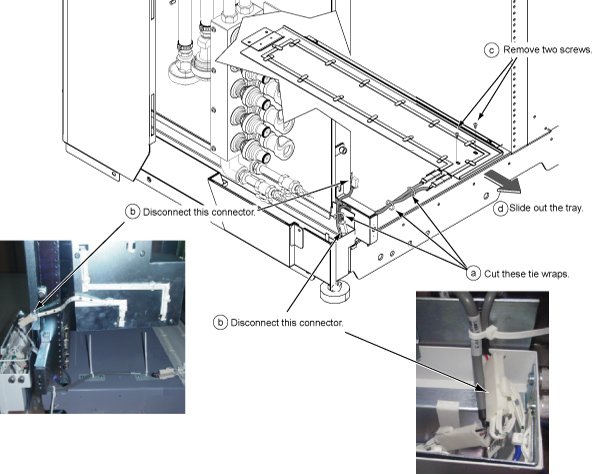

Remove bottom leak sensor tray.
1. Cut tie wraps.
2. Disconnect Connector.
3. Remove two screws.
4. Slide out the tray.

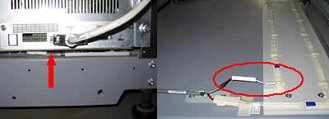

Figure 1. Leak Sensor (Bottom)
Notice
The space between XFD-PS and base plate is very small. When inserting the XFD-PS, be careful not to damage the sensor cable.
Installation is reverse order of removal.
