ICN Hard Drive Replacement (Dell R-620/630)

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
110 minutes30 minutes30 minutes
Table 2. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
ICN Hard Drive1-

See Illustrated Parts .

-
Table 3. Safety

About this task

This procedure documents the process for replacing the hard drive in the Dell R-620/630 ICN.

Procedure

  1. From the Common Service Desktop, turn off the ICN. See ICN On/Off Procedure.
  2. Do not remove the drive from its static sensitive packaging until it is needed.
  3. Press the orange circle on the front of the ICN to remove the drive.

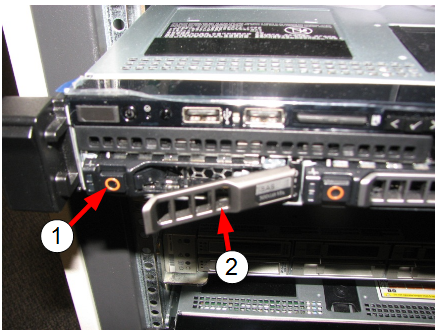

    Figure 1.
    Item Description
    1Orange circle (press to remove hard drive)
    2Front lever
  4. Carefully pull out the drive.
  5. Take out the new drive from the static-sensitive packaging and insert into the ICN.
  6. Close the front lever to properly seat the drive.

Finalization

  1. Turn on the ICN. See ICN On/Off Procedure.
    Note:

    For the first three or four minutes, the LEDs illuminate only at the rear of the ICN, next to the power cables. After three to four minutes, the ICN fans are audible and the LED on the front of the ICN starts flashing.

  2. Configure the new ICN, using VRE Configuration.
  3. Perform Check Scan.
