Installing the hydraulic rotary pump drip pan

Installs the rotary pump oil drip pan on the dockable patient table.

1. Slide the pan into position under the table.

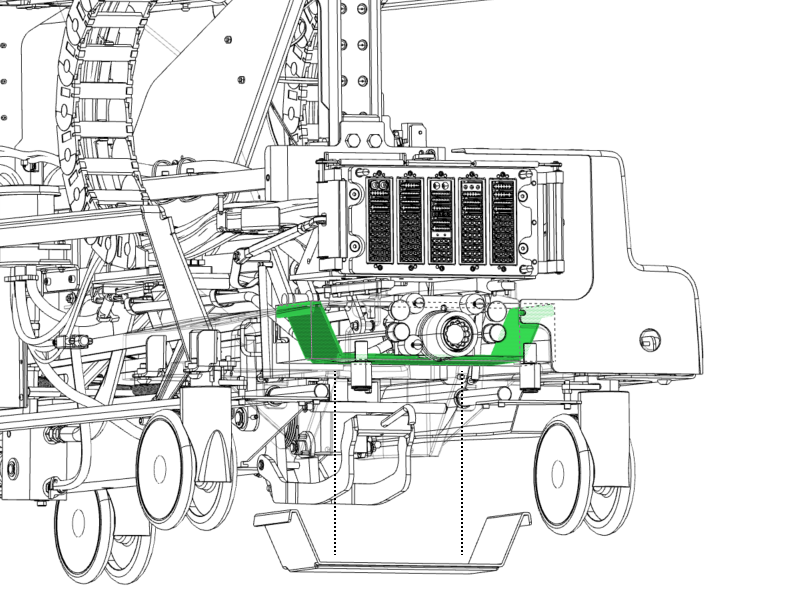

   Figure 1. Hydraulic rotary pump oil drip pan



2. Push the sides of the pan inward while sliding the pan up through the rails.
3. Position the sides of the pan to hang over the rails, securing the pan under the rotary pump.
