Installing the KASC terminator
Install the KASC terminator in the Integrated System Cabinet (ISC).
Prerequisites
| Personnel requirements | |||
|---|---|---|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
| 1 | - | 15 minutes | - |
| Replacement parts | |||
|---|---|---|---|
| Item | Quantity | Part number | Manufacturer |
| KASC Terminator | 1 | 2329754 | - |
Procedure
- Measure the resistance of the new terminator and make sure it is approximately 50 ohms.
- Carefully push in the replacement terminator in the front panel of the KASC.

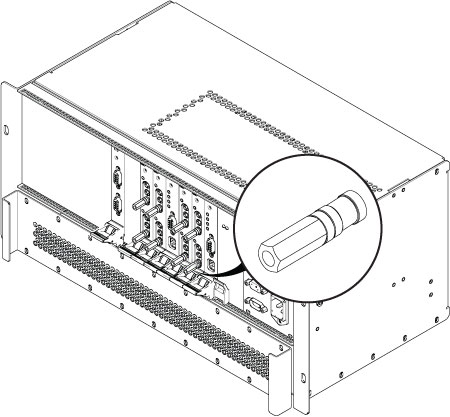

Figure 1. KASC terminator
Finalization
- Remove LOTO from the reconstruction equipment. See the MR Service Safety Manual, PN 5452735.
- Turn the ICNs on per ICN On/Off Procedure. note:
For the first 3 or 4 minutes, LEDs come on only at the rear of the ICN, next to the power cables. After 3 to 4 minutes, you will hear the ICN fans come on and then the LED at the front of the ICN starts to flash.
- Perform a TPS reset, and then do a check scan to make sure the system operates correctly. .
