Optima MR450w BASE 1.5T System Service Methods
5690012-2EN Revision 3
Object ID: 00000018WIA3023FD20GYZ
Topic ID: id_13106621 Version: 4.10
Date: Jun 23, 2021 2:08:38 AM

1.5T Coil Vendor Manuals (DV)

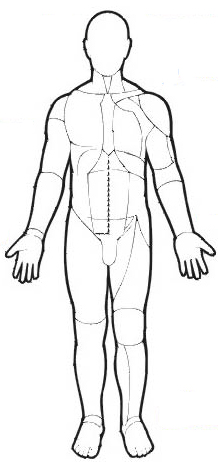

Table 2 : Split-Top Head		Table 1 : Brain
Table 3 : Head/Neck/Spine		Table 5 : Cervical/Thoracic/Lumbar
Table 8 : Breast		Table 6 : Shoulder
Table 7 : Cardiac		Table 10 : Body
Table 11 : Flex		Table 9 : Wrist
Table 4 : Neurovascular		Table 13 : Knee
Table 12 : Quad Lower Extremity		Table 14 : Foot/Ankle
Table 12 : Quad Lower Extremity

Note: Operator manuals are for reference only. The latest revision is shipped with the coil.

Table 1. Brain Coil
Description	MCAT #	Mfr	Coil FRU #	Service Documents
1.5T 8-Channel High Resolution Brain Array Coil	M3335LZ	Invivo	5146634-2	1.5T 8-Channel High Res Brain Array Introduction 1.5T 8-Channel High Res Brain Array MCQA Test 1.5T 8-Channel High Res Brain Array Replacements 1.5T 8-Channel High Res Brain Array FRUs 1.5T 8-Channel High Res Brain Array Troubleshooting

Table 2. Split-Top Head Coil
Description	MCAT #	Mfr	Coil FRU #	Service Documents
1.5T TR Split-Top Head Coil	G6000BG	GE	5182594	1.5T TR Split-Top Head Coil Introduction 1.5T TR Split-Top Head Coil SNR Test and Troubleshooting 1.5T TR Split-Top Head Coil Replacements 1.5T Split-Top Head Coil FRUs and Other Accessories

Table 3. Head/Neck/Spine (HNS) Coil
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T HNS Coil	M7000AN	GE	2424048	Operator Manual: DOC1821185 (Online documentation library) Installation Procedure: DOC1821309 (Online documentation library) 1.5T HNS Coil Introduction 1.5T HNS Coil Cable Replacement 1.5T HNS Coil FRUs 1.5T HNS Coil Troubleshooting 1.5T HNS Mirror Repair/Replacement 1.5T HNS NCU Connector Bracket Replacement 1.5T HNS Coil MCQA Setup

Table 4. Neurovascular (NV) Coils
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T NV Array Coil	M3087JJ	Medrad	5117092-2	1.5T HD NV Array Introduction 1.5T HD NV Array Setup for SNR Test 1.5T HD NV Array FRUs 1.5T HD NV Array Mirror Replacement 1.5T HD NV Array Cable Replacement
`(For curved table only)` 1.5T HD 8-Channel NV Array Coil	M3335M	Invivo	5147135-2 or 5147135-8	1.5T HD 8-Channel NV Array Introduction 1.5 HD 8-Channel NV Array Setup for MCQA Test (Invivo or GE) 1.5T HD 8-Channel NV Array Replacement 1.5T HD 8-Channel NV Array FRUs 1.5T HD 8-Channel NV Array Troubleshooting Field Cleaning of Contact Pins Instructions: DOC1900998 (Online Documentation Library)

Table 5. Cervical/Thoracic/Lumbar (CTL) Coil
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T 8-Channel CTL Coil	M3335MA / M3335TC	GE	2416754	1.5T HD 8-Channel CTL Introduction 1.5T HD 8-Channel CTL FRUs 1.5T HD 8-Channel CTL Cable Replacement 1.5T HD 8-CH CTL Setup for MCQA Test 1.5T Signa HD 8-Channel CTL Troubleshooting

Table 6. Shoulder Coils
Description	MCAT #	Mfr	Coil FRU #	Service Documents
1.5T 8-Channel Shoulder Coil	M3340CE	NeoCoil	5308343-2	Service Manual: DOC1821313 (Online documentation library)
1.5T 16-Channel Shoulder Coil	M7100SG	NeoCoil	5848751-2	Service Manual: DOC2440424 (Online documentation library)
1.5T 3-Channel Shoulder Coil	M7000AT	GE	5351485	1.5T Phased Array Shoulder Coil Introduction 1.5T Phased Array Shoulder Coil Setup for MCQA Test 1.5T Phased Array Shoulder Coil Cable Replacement 1.5T Shoulder Coil FRU List 1.5 HD 3-Channel Shoulder Coil Troubleshooting Tips
1.5T 16-Channel Shoulder Coil	M7006CA	Invivo	5720376-2	Operator Manual: DOC1853933
				Service Manual: DOC1853935
				16-Channel Shoulder Coil MCQA Setup Test: DOC1853936
1.5T 3ch Shoulder Coil with P connector	M7001NE	GE	5498927	1.5T 3ch Shoulder Coil Introduction
				1.5T 3ch Shoulder Coil FRUs and Cable Replacement
				1.5T 3ch Shoulder Coil Setup for MCQA Test

Table 7. Cardiac Coils
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T 8-Channel Cardiac Coil	M3335MD	GE	2415376	1.5T HD Cardiac Coil Introduction 1.5T HDx Cardiac Coil Setup for MCQA Test 1.5T HDx Cardiac Coil Cable Replacement 1.5T HDx Cardiac Coil FRUs 1.5T HDx Cardiac Coil Troubleshooting
`(For curved table only)` 1.5T 32-Channel High Resolution Cardiac Array Coil	M7000LB To use on flat table, order 5406404-1 and 5406404-12.	Invivo	Anterior: 5366664-2 Posterior: 5366664-3	Service Manual: DOC1821316 (Online documentation library) Operator Manual: DOC0600001 (Online documentation library)

Table 8. Breast Coils
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T Breast Array Coil	M3087JG	GE	2401500	1.5T Breast Array Coil Introduction 1.5T Breast Array Coil Setup for SNR Test 1.5T Breast Array Coil FRUs 1.5T Breast Coil System Cable Replacement 1.5T HD Breast Array Coil Troubleshooting
1.5T Vanguard Breast and MRI Table	M7000FG M7000FH	Sentinelle	Multiple. Refer to Service Manual.	Service and Installation Manual: DOC0857353 (Online documentation library) Note: Please do not install Coil Data Disk because Coil Data has been installed during loading USB host software. Operator Manual: DOC1821325 (Online documentation library)

Table 9. Wrist Coil
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T 8-Channel Wrist Array Coil	M3335LJ	Invivo	5160986-2	1.5T HD 8-Channel Wrist Array Introduction 1.5T HD 8-Channel Wrist Array MCQA Test Setup 1.5T HD 8-Channel Wrist Array Cable and Post Replacement 1.5T HD 8-Channel Wrist Array FRUs 1.5T HD 8-Channel Wrist Array Troubleshooting

Table 10. Body Coils
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T 8-Channel Body Array Coil	M3335MC	GE	2415366	1.5T HD 8-Channel Body Array Coil Introduction 1.5T HD 8-Channel Body Array Coil Setup for MCQA Test 1.5T HD 8-Channel Body Array Coil FRUs 1.5T HD 8-Channel Body Coil Cable Replacement 8-Channel Body Array Anterior Handle Replacement 1.5T HD 8-Channel Body Array Coil Troubleshooting
`(For curved table only)` 1.5T 12-Channel Body Array Coil	M7000AR	GE	2419065	1.5T HD 12-Channel Body Array Coil Introduction 1.5T HD 12-Channel Body Array Coil Setup for MCQA Test 1.5T HD 12-Channel Body Array Coil Cable Replacement 1.5T 12-Channel Body Array Coil FRUs 1.5T HD 12-Channel Body Array Coil Troubleshooting

Table 11. Flex Coils
Description	MCAT #	Mfr	Coil FRU #	Service Documents
1.5T General Purpose (GP) Flex Coil and Adapter	M1085GF	GE	2320288 DV Adapter: 5176411	1.5T GP Flex Coil Introduction 1.5T GP Flex Coil SNR Test and Troubleshooting 1.5T GP Flex Coil Replacements
1.5T 6-Channel Phased Array Flexible Coil	M0049SS	NeoCoil	Coil Paddle: 5229623 QD Assembly: 5363382	Service Manual: DOC0757335 (Online documentation library) Operator Manual: DOC0798318 (Online documentation library) MCQA Tool
16-Channel GEM Flex Coil	M7000SE M7000SF M7000SD	NeoCoil	Large Array: 5430000-2 Medium Array: 5430000-3 Small Array: 5430000-4 Interface Box: 5430000-5	Service Manual: DOC0963963 (Online documentation library) Operator Manual: DOC1576699 (Online documentation library)
16-Channel Flex Coil Foot/Ankle/Knee Positioner	M7005BE	GE	5437192	Lower Extremity Positioner FRUs and Replacements
Flex Coil Accessory Immobilization Devices (accessory to GEM flex coil)	M7005BB M7005BA M7005BC	Neocoil	See Service Manual	Service Manual: DOC1781020 (Online documentation library)

Table 12. Quad Lower Extremity (QLE) Coil
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T QLE Coil	M3335ME	Invivo	5147225-2	HD T/R Quad Extremity Coil Introduction HD T/R Quad Extremity Coil SNR Test HD T/R Quad Extremity Coil Parts HD T/R Quad Extremity Coil Replacements Field Cleaning of Contact Pins Instructions: DOC1900998 (Online Documentation Library)

Table 13. Knee Coil
Description	MCAT #	Mfr	Coil FRU #	Service Documents
`(For curved table only)` 1.5T Knee Array Coil	M3087JF	Invivo	5114356-2 or 5144356–14	DOC1740170 (Online documentation library) Field Cleaning of Contact Pins Instructions: DOC1900998 (Online Documentation Library)
16 Channel 1.5T Knee Coil	M7001NL	QED	5718233–2	DOC1916642 (Online documentation library)

Table 14. Foot/Ankle Coil
Description	MCAT #	Mfr	Coil FRU #	Service Documents
1.5T HD 8-Channel Foot and Ankle Coil	M3340CD	Invivo	5308342-2	1.5T HD 8-Channel Foot/Ankle Coil Introduction 1.5T HD 8-Channel Foot/Ankle Coil FRUs 1.5T HD 8-Channel Foot/Ankle Coil Replacements 1.5T HD 8-Channel Foot/Ankle MCQA Test Setup 1.5T HD 8-Channel Foot/Ankle Troubleshooting Tips
8-Channel Foot and Ankle Coil	M50002GF	GE	5459510	See the latest revision of 5443918-1EN (DOC1097218), available from the online documentation library.
1.5T 8ch Foot Ankle Coil	M7001NM	RFT	5726388-2	DOC1876978, 8ch Foot Ankle Coil Service Manual, is available by downloading from the online documentation library.
