1.5T Phased Array Shoulder Coil Introduction

Introduction

To identify the Phased Array Shoulder Coil, refer to the coil label in Figure 1.

Figure 1. Coil Label

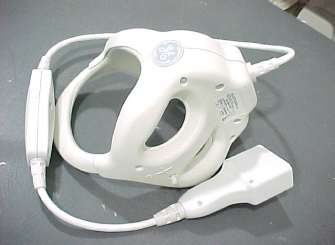

Figure 2 shows a picture of the Phased Array Shoulder Coil.

Figure 2. Phased Array Shoulder Coil
Table 1. Shipping List for Shoulder Coil with Preamp P/N 5344905
Part Name GE Part Number Quantity
1.5T HD Shoulder Coil53449051
Patient Comfort Pad24235141
Spacer Pad 24235161
Phantom Holder2375136-31
Positioning Straps (Set of 2)53683901
Operator Manual Packet2422148-5001
MR450 3-Channel Shoulder Coil Definitions Disk53897731

Related Documentation

Operator’s Guide, GE P/N 2422148.

Environmental Requirements

Storage Requirements: Coil should be stored in the scanner room.

Dimensions: 8.5 in. (L) x 9.1 in. (W) x 12.4 in. (H), 21.7 cm x 23.2 cm x 31.6 cm

Weight: 7.0 lbs. (3.2 kg)
