• Optima MR450w BASE 1.5T System Service Methods
  • 5690012-2EN Revision 3
  • Object ID: 00000018WIA3061DD20GYZ
  • Topic ID: id_13107015 Version: 3.0
  • Date: Aug 29, 2019 1:57:15 AM

1.5T 8-Channel Body Array Coil Introduction

Overview

This document describes the 1.5T HD 8-Channel Body Array Coil, made by GE/USAI, Catalog Number M3335MC.

Product Identification and Shipping List

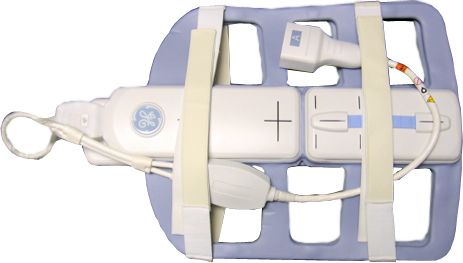

Figure 1. 8-Channel Body Array Coil
Table 1.
Description GE Part Number USAI Part Number Quantity
HD 8-Channel Body Array Coil2415366N/A1
Body Pad Kit, 1.5T Coil (150448,150460,150510,150521)2377425-6U1-1504791
Multi-Lingual Label Set - Do Not Pull (English version applied to coil.)2409227N/A2
Operator Manual Set (Multi-lingual)2415429N/A1

Related Documentation

GE Healthcare Signa 1.5T HD 8-CH Body Array Coil Operator Manual, Direction 2415429.

Environmental Requirements

Storage Requirements: Store the coil in an air-conditioned scan room or equipment room. To store the coil, a storage space of 60 cm x 80 cm x 10 cm is required.

Table 2. Environmental Requirements
Environmental Factor Transport/Storage Operating Conditions
Barometric Pressure872 hPa to 1060 hPaAs established by the GE recommended MR suite conditions.
Humidity20% to 95% noncondensing45% to 75% noncondensing
Temperature-15°C to 55°C (5°F to 131°F)15°C to 35°C (59°F to 95°F)

Dimensions:

  • Anterior: 21.0 in. (L) x 27.9 in. (W), 53.5 cm x 71.1 cm

  • Posterior: 21.0 in. (L) x 30.5 in (W), 53.5 cm x 77.4 cm

Weight:

  • Anterior: 4.4 lbs (2.0 kg)

  • Posterior: 8.4 lbs (3.8 kg)
