1.5T Neurovascular Array Introduction

The information that follows is for the 1.5T Neurovascular Array Coil by Medrad, Catalog Number M3087JJ.

To identify the coil, refer to the coil label in Figure 1.

Figure 1. Coil label

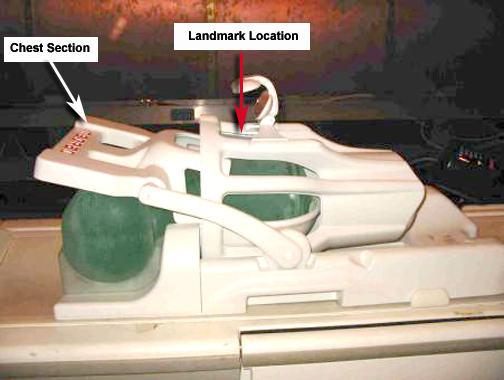

Figure 2. 1.5T Neurovascular Array Coil
Table 1. Shipping List
Description GE Part Number Medrad Part Number Quantity
1.5T HD Neurovascular Array Coil5117092-230129361
Operator Manual5117092-82031051
Comfort Pad5117092-430112531
Wedge Pad5117092-530064312
Leg Comfort Pad5117092-930112551
Phantom and Phantom Positioner Kit5117092-630129311

Related Documentation

1.5T HD Neurovascular Array Operator’s Manual, Direction 5117092-8

Environmental Requirements

Storage

This equipment must be stored under the following conditions:

  • Ambient temperature range of +10°C to +40°C (50°F to 104°F)

  • Relative humidity range of 10% to 90%, noncondensing

  • Atmospheric pressure range of 500 hPA to 1060 hPa

To store the coil, a storage space of 45.7 cm/18.0 in. (width) x 72.4 cm/28.5 in. (depth) x 42.7 cm/16.8 in. (height) is required.

Dimensions

Coil Dimension: 724.0 mm x 457.0 mm x 427.0 mm28.50 in. x 18.00 in. x 16.80 in.
Phantom: 609.6 mm x 114.3 mm x 114.3 mm24.0 in x 4.5 in. x 4.5 in.
Phantom Positioner: 393.7 mm x 200.9 mm x 115.8 mm15.5 in. x 7.91 in. x 4.56 in.

Weight

Coil Weight: 9.675 kg21.5 lb.
Phantom: 6.975 kg15.5 lb.
Phantom Positioner: 0.167 kg0.37 lb.
