Optima MR450w BASE 1.5T System Service Methods
5690012-2EN Revision 3
Object ID: 00000018WIA3028FD20GYZ
Topic ID: id_13106795 Version: 5.0
Date: Feb 21, 2021 9:14:14 PM

1.5T Head Neck Spine (HNS) Mirror Repair/Replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	40 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
⅛” and ¼” Flathead Screwdrivers	1 each	Replacement of mirror assembly	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
Mirror assembly FRU	1	Replacement of mirror assembly	2419521	GEHC Coils

About this task

Follow this process to reassemble the mirror assembly.

Procedure

Notice

Please refer to the Mirror assembly FRU list above in Replacement Parts.
FRU is needed only if the mirror assembly cannot be properly reassembled.

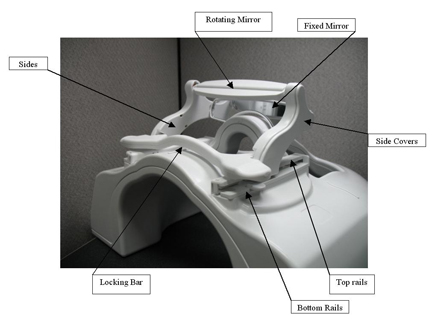

Parts of the Mirror
Inspect mirrors to ensure that they are not coming loose from the plastic housings. If the mirrors are coming loose a new mirror assembly will be needed.
Inspect all parts for broken snap features. If any of the snap features are broken, a new mirror assembly will be needed.
1. There are 2 located on each end of each of the cross pieces (the locking bar, the rotating mirror, and the fixed mirror). See Figure 1.

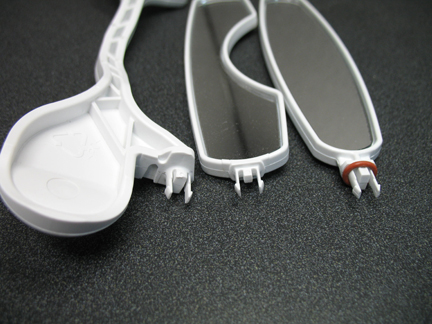

  Figure 1. Cross-Piece Snap Features
2. There are 5 on each of the side covers. See Figure 2.

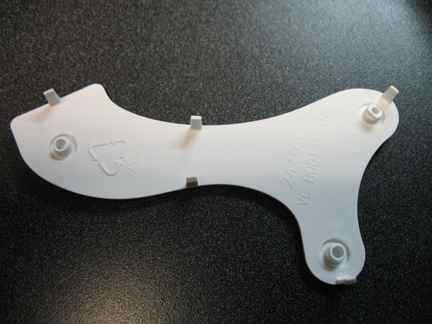

  Figure 2. Snap Features on Side Covers
3. There are 3 on each of the top rails. See Figure 3.

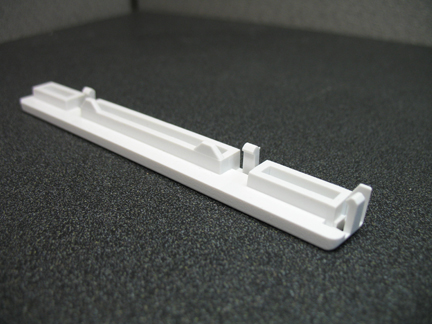

  Figure 3. Snap Features on Top Rails
If any of the cross pieces have been dislocated from their proper position (see Figure 4), the side covers will need to be removed to properly re-seat the snap feature. This is due to the locking features on the inside of the side covers. The locking features are the three round features shown in Figure 5.

Figure 4. Cross-Piece Dislocated

Figure 5. Locking Features on the Side Covers
If needed, the side covers can be removed by inserting a small screwdriver from the backside of the sides to disengage the snap feature on the side covers. (See Figure 6.) Start at the bottom and work up to the top of the mirror.

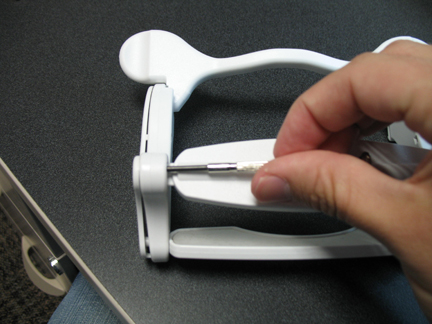

Figure 6. Removing Side Covers
When reassembling the cross pieces with the side it is best to engage all three cross pieces at the same time, rather than one at a time.
The rotating mirror requires some additional pressure to properly engage. This is because of the o-rings, which supply the correct amount of drag to resist rotation. In the picture shown (see Figure 7), firm pressure is being applied using the thumb and middle finger while gentle pressure is being applied with the index finger.

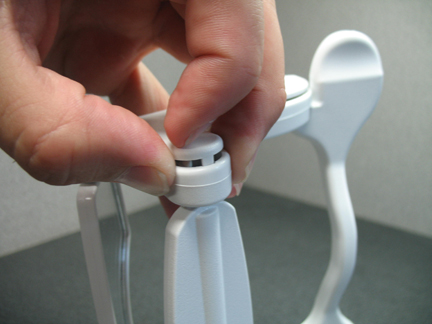

Figure 7. Engaging the Rotating Mirror
The reassembly of the rails below is from the operators manual. To prevent breakage, the mirror is designed to break away from the anterior face component. In the event that the mirror assembly is pulled from the anterior face component, the mirror can be reinstalled using the following procedure:
1. Release the lock bar on the mirror assembly, so that the two top rail sections come loose from the mirror assembly.
2. Insert the small tab on the top rail in the mirror rail base and snap the rail down so that the three snap features engage the rail base. Repeat for the other side.

  Note:
  There are right and left sides which are different. See Figure 8.
3. Slide the mirror assembly back onto the rails.

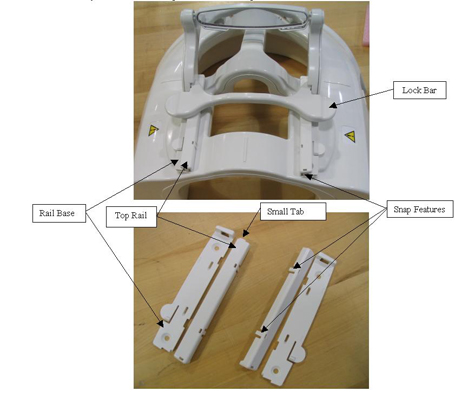

  Figure 8. Installing Mirror Rails
If a new mirror assembly needs to be installed the FRU kit includes the top and bottom rails as well as the screws needed. A decision can be made about whether the rails need to be replace, depending on the condition of the old rails. If they are to be replaced the top rails should be pulled off, and the four screws should be removed. Use the new screws to attach the new lower rails torque to 3 inch-pounds. Install top rails as described in Step 7.

Finalization

Ensure that all joints are firmly seated and that the mirror assembly is functioning properly.
