Auto Coil Install

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	5 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Any new coil that has not yet been configured for a system.	N/A	-	-	-

Plug the coil into appropriate A- and/or P-Ports. The system automatically detects the new coil and a dialog box describes that the coil has not yet been configured for the system.

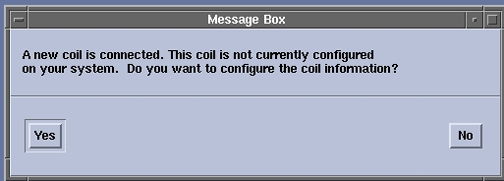

Figure 1. New Coil Detected Dialog Box
Click Yes to configure the new coil. A confirmation dialog box appears indicating that the coil was successfully configured.

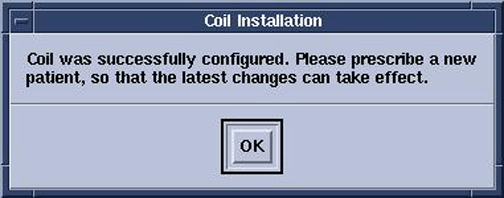

Figure 2. Configuration Successful Dialog Box
Click the OK button and prescribe a new patient for changes to take effect.
If the required information was not found on the system, and the coil could not be configured, a dialog box advises you to take a suggested course of action.

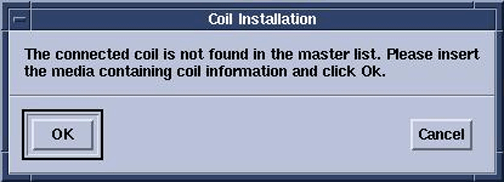

Figure 3. Configuration Not Successful Dialog Box

Note:
Insert the CD, which contains the coil configuration data, and then click the OK button.
If the system is unable to configure the coil and no media is available that contains the coil data, click the Cancel button.

No finalization steps.
