• Optima MR450w BASE 1.5T System Service Methods
  • 5690012-2EN Revision 3
  • Object ID: 00000018WIA30B3FD20GYZ
  • Topic ID: id_13107026 Version: 3.0
  • Date: Aug 29, 2019 1:51:57 AM

1.5T Split-Top Head Coil Introduction

Product Identification and Shipping List

To identify the 1.5T Split-Top Head Coil, refer to the coil label shown in Figure 1.

Figure 1. 1.5T Split-Top Head Coil Label

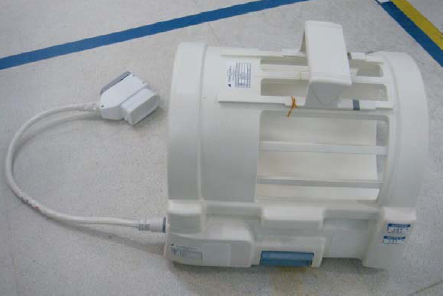

Figure 2 shows the 1.5T Split-Top Head Coil.

Figure 2. 1.5T Split-Top Head Coil
Table 1. 1.5T Split-Top Head Coil Shipping List
Description GE Part Number Quantity
1.5T Split Head Coil Assembly, HDv51825941
Cushion Head - Split Head Coil, HDv53273021
Head Coil Flat Cushion, HDv53273011
Operator Manual, 1.5T HDv Split Head Coil5182594-2991
Kit Head Restraint Straps23522021

Related Documentation

Signa GE 1.5T Split-Top Head Coil HDv Operator Manual, Direction 5182594-299.

Environmental Requirements

Storage

This equipment must be stored under the following conditions:

  • Temperature range of -40° to 70° C (-40° to 158°F )

  • Relative humidity range of 40 to 95%, non-condensing

  • Atmospheric pressure range of 525 to 1,013 hPa

Dimensions (Excluding Cable)

424.3 mm (L) x 422.3 mm (W) x 366.1 mm (H)

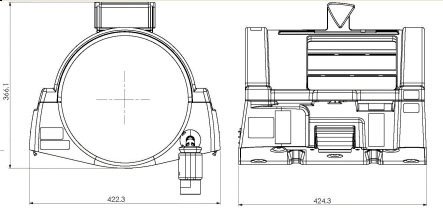

Figure 3. 1.5T Split-Top Head Coil Dimensions

Weight

12.1 lbs. (5.5 kg)
