• Optima MR450w BASE 1.5T System Service Methods
  • 5690012-2EN Revision 3
  • Object ID: 00000018WIA307ADD20GYZ
  • Topic ID: id_13107130 Version: 3.0
  • Date: Aug 29, 2019 1:52:34 AM

1.5T Breast Array Coil Introduction

Overview

This document describes the 1.5T Breast Array Coil made by GE/USAI, Catalog Number M3087JG. To identify the 1.5T Breast Array Coil, refer to both illustrations below.

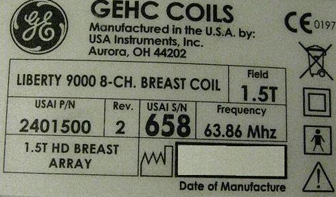

Figure 1. 1.5T Breast Array Coil Label
Figure 2. Coil with Headrest and Pads

Shipping Lists

Table 1. Shipping Contents - Box 1
Description Part Number Quantity
1.5T Breast Array24015001
Headrest Assembly24079451
Operator Manual24114121
Lateral Biopsy Assembly24080052
Table 2. Shipping Contents - Box 1 (cont.)
Description Part Number Quantity
Breast Chamber Cover24143411
Plate, Lateral Compression24145432
Plate, Medial Compression24145442
Breast Positioner53434321
Table 3. Shipping Contents - Box 2
Description Part Number Quantity
Patient Pad24085001
Transition Pad24085011
U-Shaped Headrest Pad24085021
Armrest Pad24085041
Footrest Pad24121511
Breast Chamber Cover Pad24085031
Table 4. *Shipping Content - Box 3
Description Part Number Quantity
Sterilized Lateral Biopsy Plate24143462
Sterilized Medial Biopsy Plate24143422
Biopsy Operator Manual24182081
Note:

*Only provided when the coil is ordered with the biopsy option.

Related Documentation

Operator Manual, GE P/N 2422019.

Biopsy Operator Manual, GE P/N 2418208

Environmental Requirements

Storage Requirements: Coil should be stored in the scanner room.

Dimensions: 521 mm (L) x 541 mm (W) x 244 mm (H)

Weight: 15.8 lbs (7.2 kg), excluding biopsy device
