1.5T Phased Array Shoulder Coil Setup for MCQA Test

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable15 minutesNot Applicable
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
1.5T Head TLT Phantom1-

46-265826G6

-
Phantom Positioner 1-

2375136-3

-
Table 3. Required conditions
ConditionReferenceEffectivity

Requires a minimum of 21.0 M3 software.

--

The following coil configuration name must be installed to run this tool: HDx Shoulder.

--

About this task

Procedure

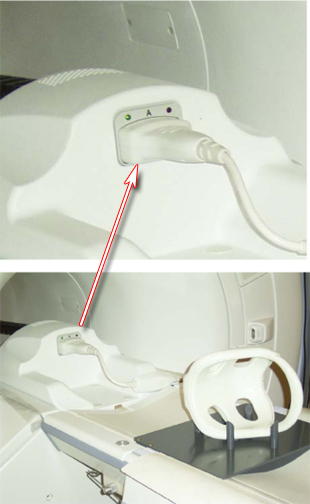

  1. Position the coil in the cradle, and connect the cable as shown.
    Figure 1. Connecting Cable to Coil
  2. Place a phantom in the coil.
    Figure 2. Positioning Phantom in Coil

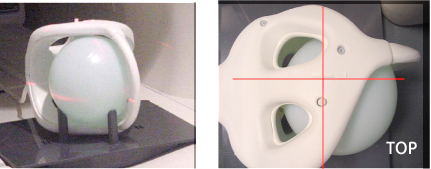

  3. Landmark on the coil crosshairs as shown.
    Figure 3. Landmarking Coil on Crosshairs
  4. Run the Multi-Coil Quality Assurance Tool.

Finalization

No finalization steps.
