1.5T 8-Channel CTL Introduction

This document describes the 1.5T 8-Channel CTL Coil by GE, Catalog Number M3335MA.

Product Identification and Shipping List

To identify the 8-Channel CTL Coil, refer to the coil label in Figure 1).

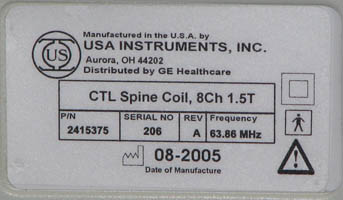

Figure 1. Coil label

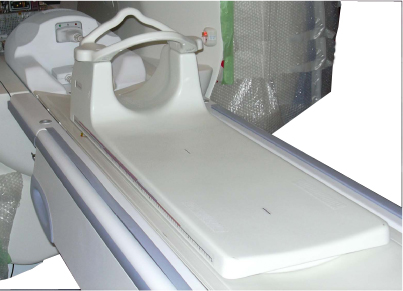

Figure 2 shows a picture of the 8-Channel CTL Coil.

Figure 2. 8-Channel CTL Coil
Table 1. Shipping List
Box # Description GE Part Number USAI Part Number Quantity
1Coil with Coil ID Cable241537524153751
3Patient Comfort Pad Kit2377426-61505001
1Adapter Block2225545-91500381
1Operator Guide241542724154271

Related Documentation

Operator’s Guide, GE P/N 2415427

Environmental Requirements

Storage Requirements: Coil should be stored in the scanner room.

Dimensions: 43.3 in. (L) x 16.1 in. (W) x 13.6 in. (H), 110.0 cm x 41.0 cm x 34.5 cm

Weight: 20 lbs. (9.1 kg)

Table 2. Environmental Requirements
Environmental Factor Transport/Storage Operating Conditions
Barometric Pressure872 hPa to 1060 hPaAs established by the GE recommended MR Suite conditions.
Humidity20% to 95% noncondensing45% to 75% noncondensing
Temperature-15°C to 55°C (5°F to 131°F)15°C to 35°C (59°F to 95°F)
