• Optima MR450w BASE 1.5T System Service Methods
  • 5690012-2EN Revision 3
  • Object ID: 00000018WIA30101F20GYZ
  • Topic ID: id_13107057 Version: 4.0
  • Date: Mar 23, 2020 2:46:19 PM

1.5T 12-Channel Body Array Coil Setup for MCQA Test

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1: Unified Phantom or 2: Legacy Phantom (HDx/HDxt only)Not Applicable30 minutesNot Applicable
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
TL Unified Phantom2 Unified Phantom Set

5343347

-
Table 3. Required conditions
ConditionReferenceEffectivity

The following coil configuration names must be installed to run this tool: GE_HDx BodyUpper and GE_HDx BodyLower.

--

The following coil configuration names must be installed to run this tool: GE_HDx BodyUpper and GE_HDx BodyLower.

--

The following coil configuration names must be installed to run this tool: GE_HDx BodyUpper2 and GE_HDx BodyLower2.

--

About this task

Follow this process to prepare for the automated SNR test using the 12-Channel Single or Dual Connector Body Array Coil by GE/USAI.

Note:

Coils do not ship with phantoms. Phantoms come in a unified phantom set with the MR system.

TL Unified Phantom Setup

Procedure

  1. Place the posterior section of the coil on the table. Place the TL unified phantoms over the posterior section as shown in Figure 1 such that the phantoms are well centered on both S/I direction as shown in Figure 2 and R/L direction as shown with arrows in Figure 3.

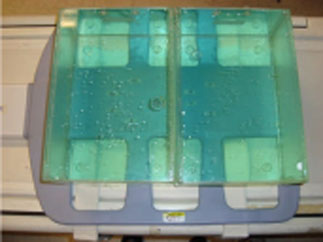

    Figure 1. TL Unified Phantoms Over Posterior Section

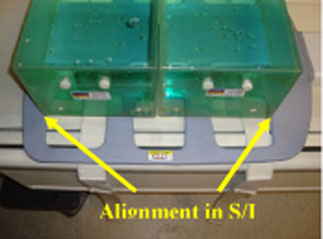

    Figure 2. TL Unified Phantoms Centered on Posterior S/I Direction

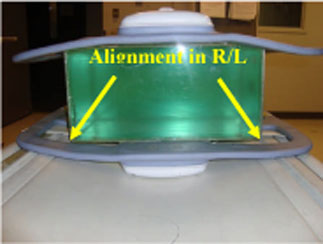

    Figure 3. TL Unified Phantoms Centered on Posterior R/L Direction
  2. Place the anterior section on the phantoms such that the coil is well centered in both S/I and R/L directions with respect to the phantom set as shown in the Figure 4 and Figure 5.

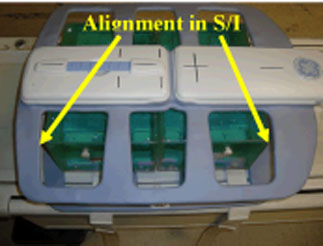

    Figure 4. TL Unified Phantoms Centered on Anterior S/I Direction

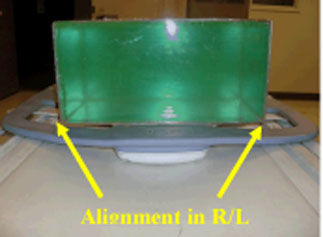

    Figure 5. TL Unified Phantoms Centered on Anterior R/L Direction
  3. Fasten the Velcro straps so that the coil firmly snugs the phantoms.
  4. Connect the coil to Port P of the system LPCA. Landmark the coil at the center cross mark as shown in the following illustration and advance to scan.

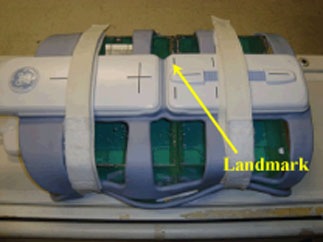

    Figure 6. Landmarking Coil
  5. After coil and phantom are properly positioned, perform Multi-Coil Quality Assurance (MCQA) Tool.

Finalization

Finalization

No finalization steps.
