SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30E35450GYZ
Topic ID: id_2022278 Version: 1.5
Date: Oct 11, 2021 6:31:29 PM

Replacing the mounting block

Procedure

Remove the screws securing the mounting block. The block assembly is attached to the shaft linkage-left using two screws and the link plate-left rear with four screws.

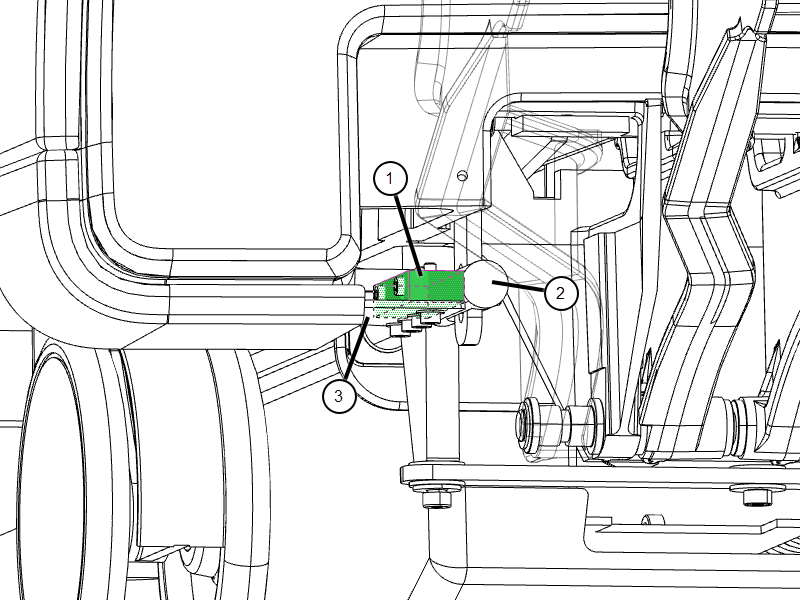

Figure 1. Link plate-left rear and mounting block

1 Mounting block
2 Shaft linkage-left
3 Link plate-left rear
Install the new mounting block to the shaft linkage-left using two screws and the link-left rear with four screws. Apply Loctite when reinstalling the screws.

1	Mounting block
2	Shaft linkage-left
3	Link plate-left rear
