SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30F0B350GYZ
Topic ID: id_2020843 Version: 1.10
Date: Aug 9, 2021 4:31:14 PM

Installing the P1/PE cable into the dockable table cradle

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
2	-	30 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Consumables
Item	Quantity	Part number	Manufacturer
7.31 x 0.184 Self-Locking Cable Tie	As required	46-208758P3	-

Procedure

Route the cable assembly through the left-hand cable pass-through at the handle end of the cradle.
Install the plastic bearings and brass cable track mounting blocks onto the cable track.

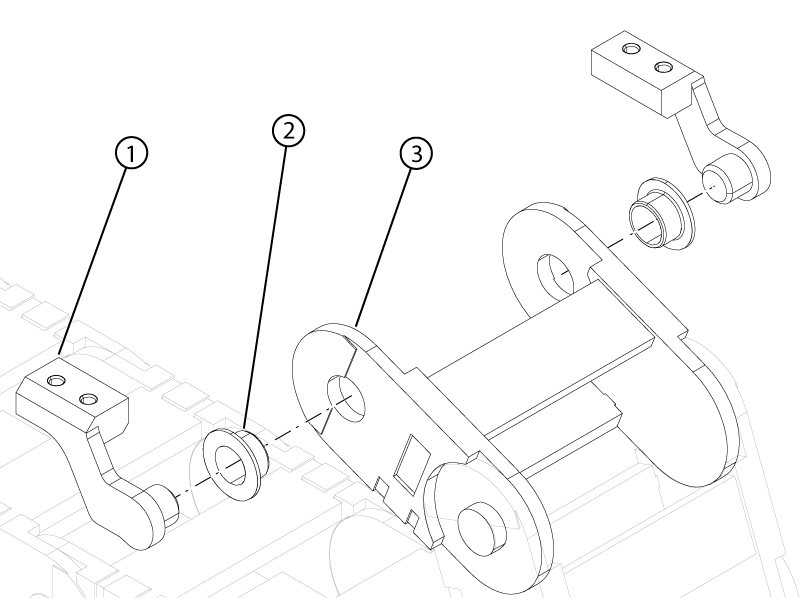

Figure 1. Cable track mounting blocks
1 Brass cable track mounting block
2 Plastic bearing
3 Cable track
Install the four brass screws and four washers securing the brass cable track mounting blocks (underneath the cradle) to the bottom of the cradle.

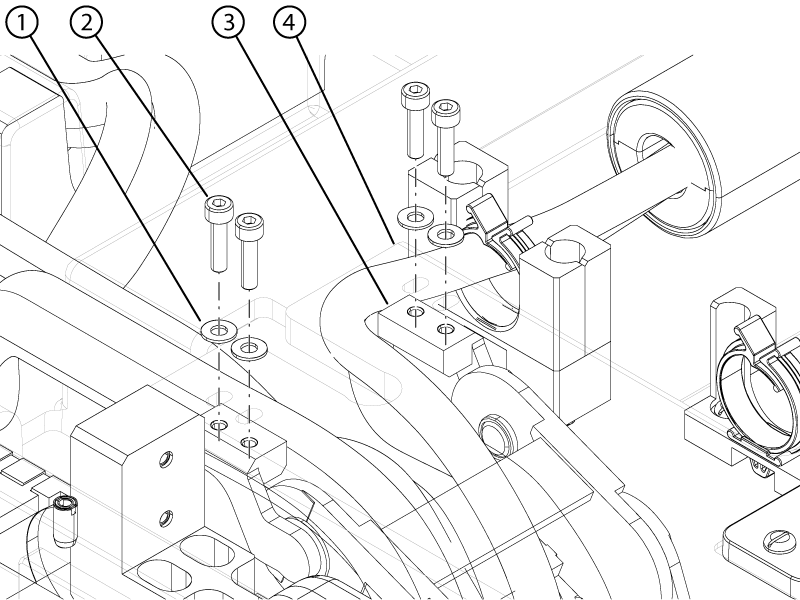

Figure 2. Cradle cable track mount
1 Brass washer
2 Brass screw
3 Brass cable track mounting block
4 Cradle bottom
Install the balun into the balun holder.

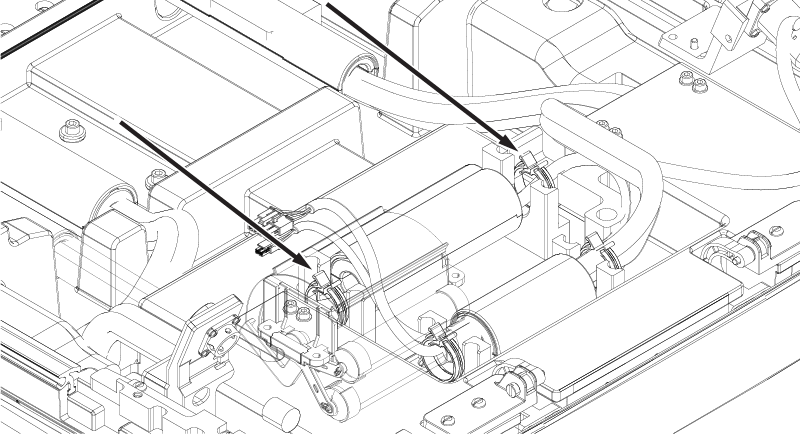

Figure 3. Balun holder latches
Install the microphone to the handle-end cradle cover.

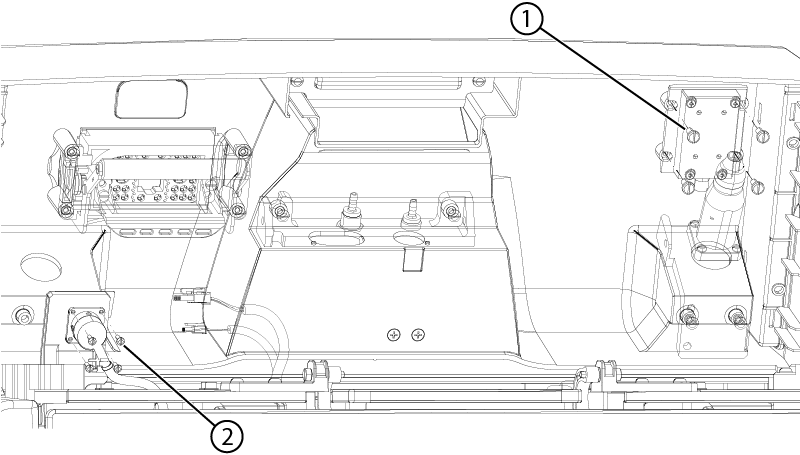

Figure 4. Handle-end cover components
1 Microphone screw
2 Electro-cardiogram connector screw
Install the four screws securing the microphone to the cover.
Install the Electro-CardioGram (ECG) connector to the ECG bracket with the grommet located in the slot in the cradle bottom.

Important: The grommet on the ECG cable is fragile. Protect the grommet during installation.
Install the four screws securing the ECG connector to the bracket.
Install the P3 port to the handle-end cradle cover.
Install the four screws securing the P3 port to the handle-end cradle cover.
Route the PE cables to the PA coil location.
Route the P1 cable in the cradle cable track to the bore end of the cradle.
Install the two balun holders securing the P1 port cable to the cable routing track.

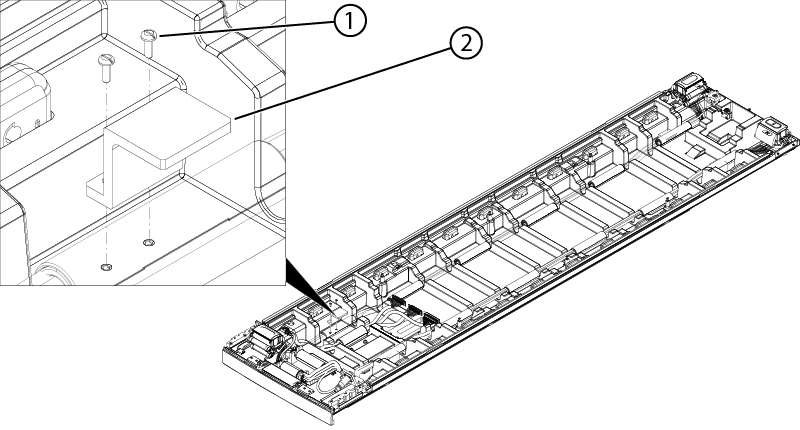

Figure 5. P1 cable balun holders
1 Screw
2 Balun holder
Install the two screws securing each of the balun holders to the cradle.
Install cable ties in the locations from which cable ties were removed during cable removal.
