SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30D0B350GYZ
Topic ID: id_2020841 Version: 1.14
Date: Apr 23, 2020 8:52:45 PM

Installing the dockable table cradle

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
2	-	30 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-

Procedure

Place the cradle onto foam blocks on the table.

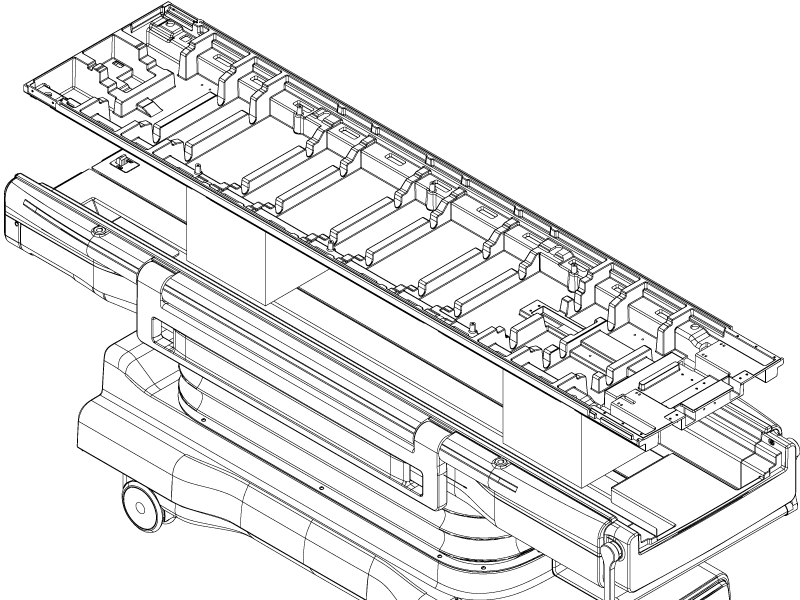

Figure 1. Cradle on foam blocks
Install the following into the cradle:
- The primary latch interface

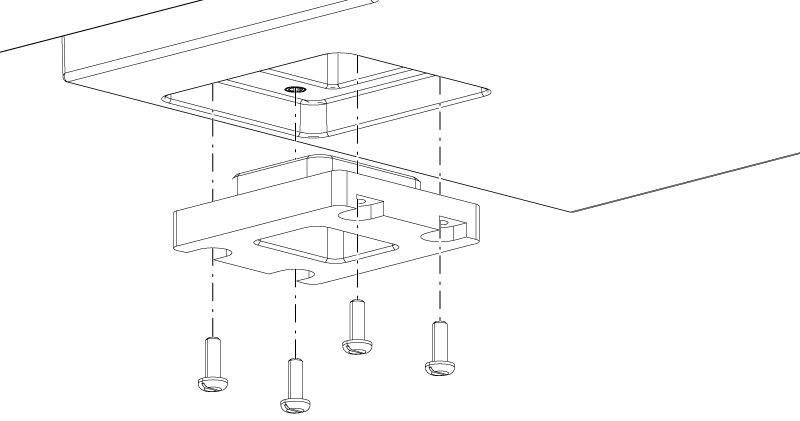

  Figure 2. Primary latch interface
- Two cover plates

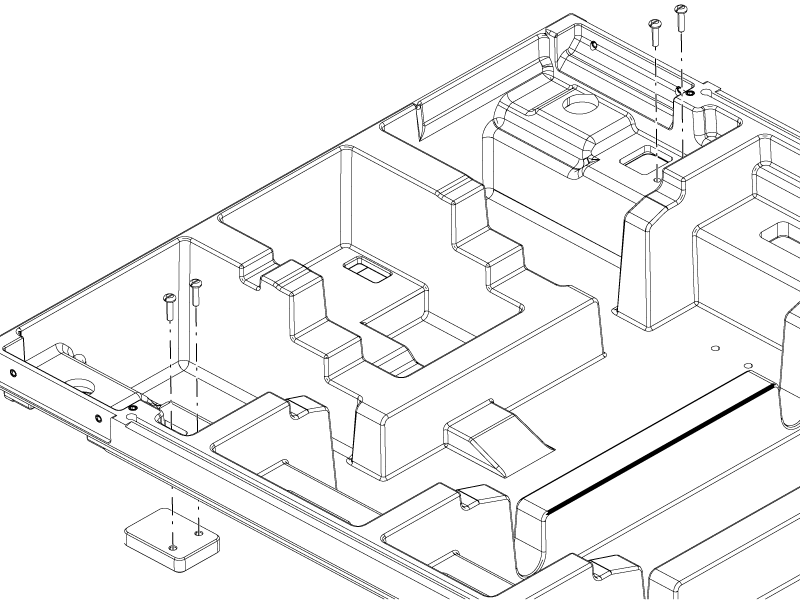

  Figure 3. Cover plates
- Two hardtop cover stop screws
  Important: Install the screws only finger tight. The cradle bottom may crack if the screws are over-tightened.

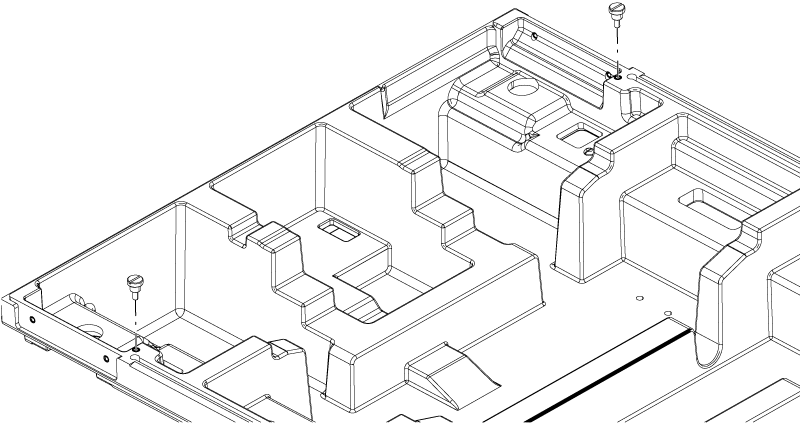

  Figure 4. Hardtop stop screws
- Eight cradle side wheels

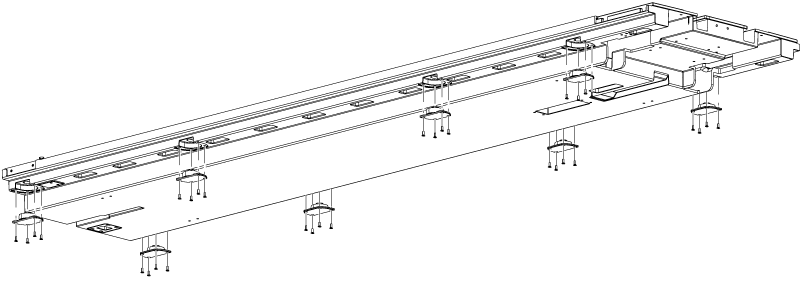

  Figure 5. Side wheels
- 24 cradle vertical wheels

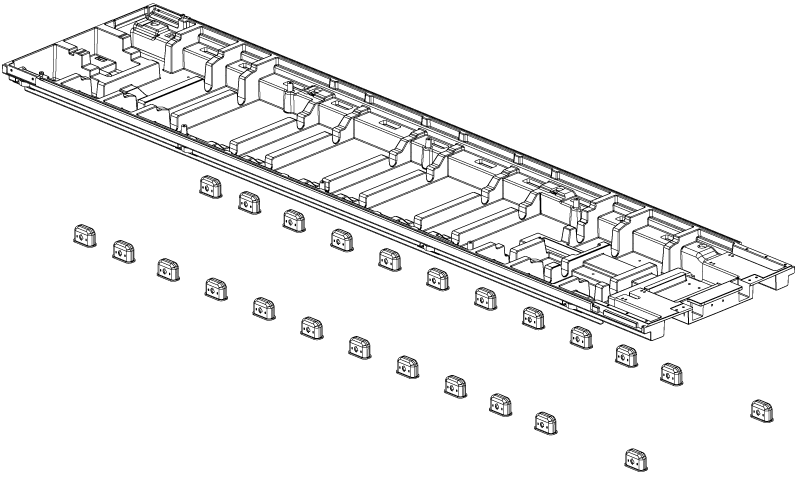

  Figure 6. Vertical wheels
- The secondary latch interface

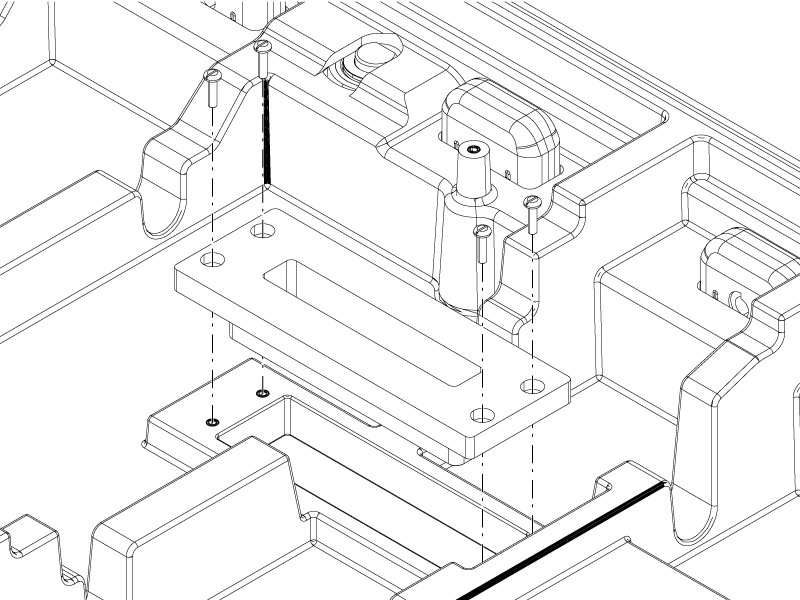

  Figure 7. Secondary latch interface
- The Electro-CardioGram (ECG) bracket

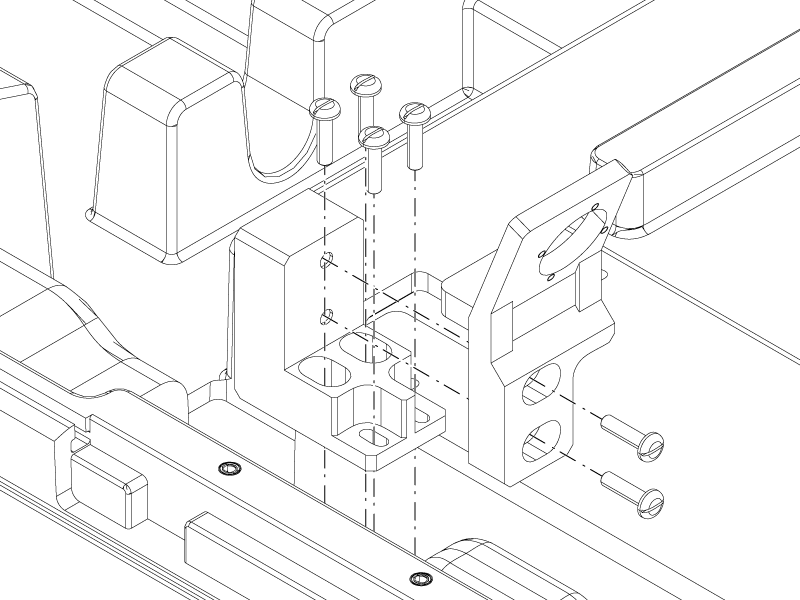

  Figure 8. ECG bracket
- Four P3 and P4 balun holders

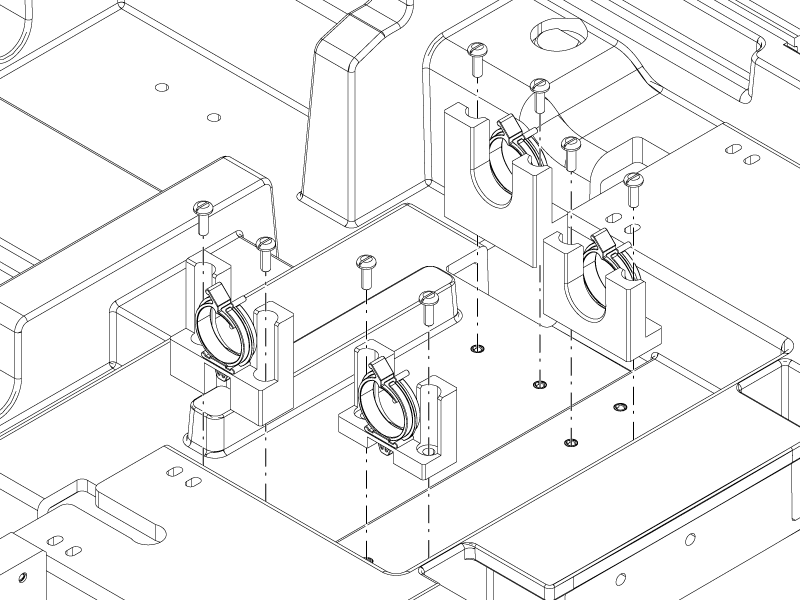

  Figure 9. Balun holders
- The rear flap and supports

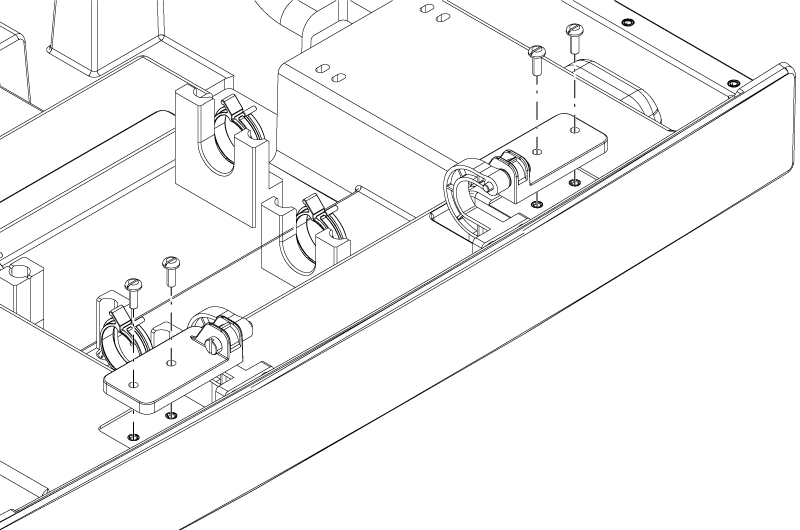

  Figure 10. Rear flap and supports
