3.0T HD Breast Array Coil Setup for MCQA or SNR Test

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
3.0T 10 cm Spherical Phantoms	2	Unified phantom set	2360034	-
Phantom Positioner, Breast	1	Unified phantom set	5343432	-

Table 3. Required conditions
Condition	Reference	Effectivity
The appropriate coil configuration file must be installed to run this tool.	-	-

Follow this process to set up for the MCQA or SNR test using the 3.0T HD 8-Channel Breast Array (M3335LA).

Note:

Coils do not ship with phantoms. Phantoms come in a unified phantom set with the MR system.

Topic ID: id_SL3174491-618689

Note:
If installing the coil for the first time, see Auto Coil Install.

Position the coil in the cradle, and connect the cable.

Figure 1. Connecting Coil

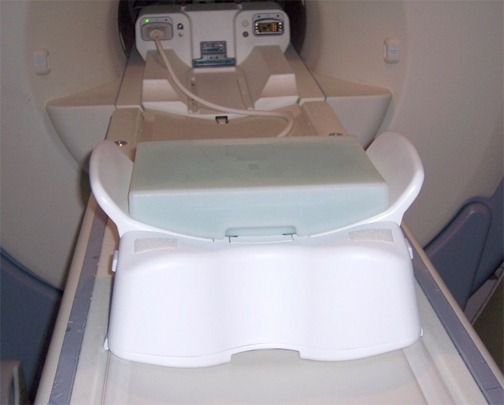

Place a phantom in the coil.

Figure 2. Positioning Phantom

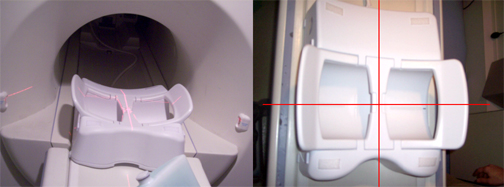

Landmark on the coil crosshairs.

Figure 3. Landmarking Coil
Proceed to the MCQA Test, if available. Otherwise, perform Surface Coils SNR Test.

Topic ID: id_SL3174492-618689

Connect the coil to the system as shown in Step 1

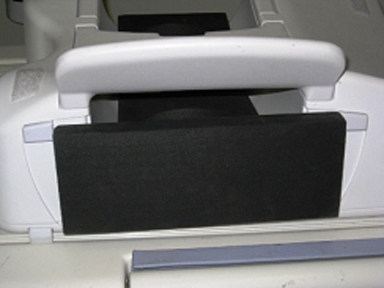

Place the coil on the patient table and insert the phantom positioner into the coil.

Figure 4. Placement of Phantom Positioner
The position of the spherical phantoms from the side of the coil is shown below.

Figure 5. Spherical Phantoms - Side View
Place the phantoms on the phantom positioner.

Figure 6. Phantom Placement

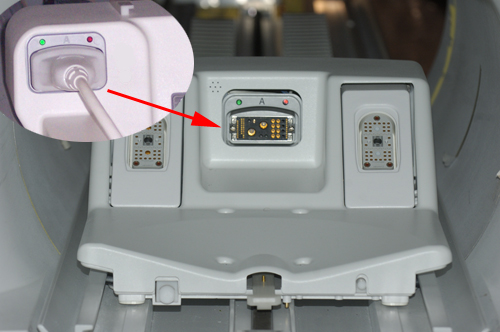

Connect the coil to appropriate port of the system LPCA.

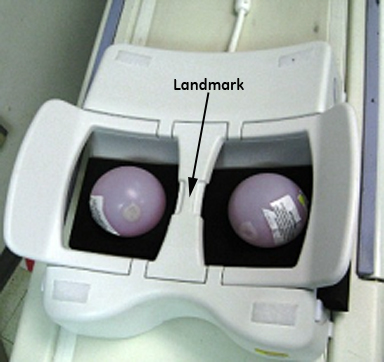

Landmark on the center of the bridge between both the chambers as shown in Figure 6, and advance to scan.
Proceed to the MCQA Test, if available. Otherwise, perform Surface Coils SNR Test.

Topic ID: id_14931559

No finalization steps.
