To identify the 3.0T HD 8-Channel Wrist Coil by Invivo, catalog
M3340GA (for curved table), refer to the coil label in Figure 1. For catalog
M7000GW (for flat table), refer to the coil label in Figure 2.

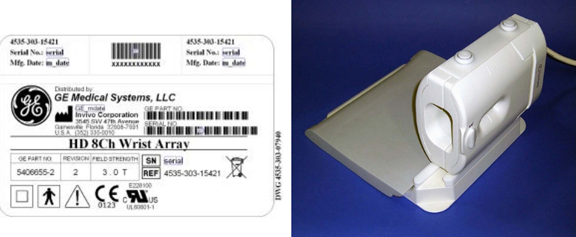

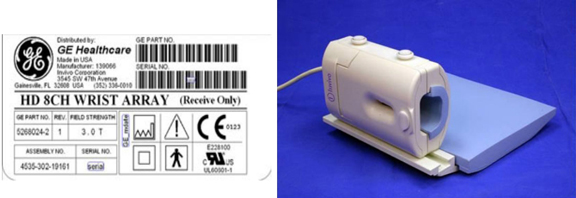

Figure 1. 3.0T Wrist Coil and Label (for Curved Table)Figure 2. 3.0T Wrist Coil and Label (for Flat Table)
Table 1. Shipping List – Catalog M3340CA (for Curved Table)
Description
GE Part #
Invivo Part #
Qty
3.0T HD 8-Channel Wrist Array (for curved table) with Cable
5268024-2
4535-203-19161
1
3.0T HD Wrist Array Operator Manual
5268024-4
4535-302-18611
1
HD 8-Channel Wrist Array Baseplate/Riser
5160986-12
4535-302-37291
1
8-Channel Wrist Coil Wrist Pad
5160986-6
105918
1
8-Channel Wrist Coil Base Pad
5160986-7
105914
1
8-Channel Wrist Coil Finger Pad
5160986-8
105915
1
8-Channel Wrist Coil Palm Pad
5160986-9
105916
1
8-Channel Wrist Coil Upper Pad
5160986-10
105917
1
8-Channel Wrist Coil Elbow Pad
5160986-11
105919
1
Table 2. Shipping List — Catalog M7000GW (for Flat Table)
Description
GE Part #
Invivo Part #
Qty
3.0T HD 8-Channel Wrist Array (for flat table) with Cable,
Baseplate, and Riser
5406655-2
4535-303-04691
1
3.0T HD Wrist Array Operator Manual
N/A
4535-303-05031
1
8-Channel Wrist Coil Wrist Pad
N/A
4535-303-03211
1
8-Channel Wrist Coil Base Pad
N/A
4535-303-03221
1
8-Channel Wrist Coil Finger Pad
N/A
4535-303-03231
1
8-Channel Wrist Coil Palm Pad
N/A
4535-303-03241
1
8-Channel Wrist Coil Upper Pad
N/A
4535-303-03251
1
8-Channel Wrist Coil Elbow Pad
N/A
4535–303–03261
1
Related Documentation
(For curved table) 3.0T HD Wrist Array Operator
Manual, GE PN 5268024-4
