3.0T Breast Array Coil Introduction

Overview

This document describes the 3.0T GEM Breast Array Coil made by GE Healthcare, Catalog Number M7000GF or M7000GG (without biopsy plates). To identify the 3.0T GEM Breast Array Coil, refer to the illustrations below.

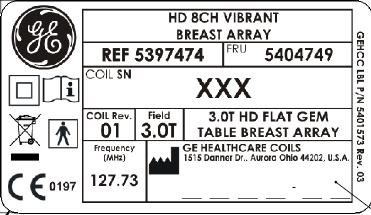

Figure 1. 3.0T GEM Breast Array Coil Label
Figure 2. Coil with Headrest and Pads
Note:

Pads are gray on the GEM Breast Array Coil.

Shipping Lists

Table 1. Shipping Contents - Box 1
Description Part Number Quantity
3.0T Breast Array53974741
Headrest Assembly53963461
Operator Manual24220191
Lateral Biopsy Assembly53805662
Breast Chamber Cover24143411
Plate, Lateral Compression24145432
Plate, Medial Compression24145442
Breast Positioner53434321
Table 2. Shipping Contents - Box 2
Description Part Number Quantity
Patient Pad54016601
Transition Pad54016611
U-Shaped Headrest Pad54049191
Armrest Pad54016621
Footrest Pad54016631
Breast Chamber Cover Pad54049231
Compression Pad54093791
Table 3. Shipping Content - Box 3
Description Part Number Quantity
The following items are provided only when the coil is ordered with the biopsy option.
Breast Coil Lateral Biopsy Plate24240042
Breast Coil Medical Biopsy Plate24240062
Biopsy Operator Manual24182081

Related Documentation

Operator Manual, GE P/N 2422019.

Biopsy Operator Manual, GE P/N 2418208

Environmental Requirements

Storage Requirements: Coil should be stored in the scanner room.

Dimensions: 521 mm (L) x 541 mm (W) x 244 mm (H)

Weight: 15.8 lbs (7.2 kg), excluding biopsy device
