3.0T HD 8-Channel Wrist Coil FRUs and Replacements

Topic ID: id_SL2081904-1064634

Personnel Requirements


Required Persons	Procedure Timing
1	30 minutes

Topic ID: id_SL2081905-1064634

This document contains the list of FRUs and the replacement procedures for the 3.0T HD 8CH Wrist Coil by Invivo, catalog M3340CA

Topic ID: id_SL2081835-1064634

Topic ID: id_SL3175963-1064634


Description	GE Part #	Invivo Part #
3.0T HD 8-Channel Wrist Array Coil with Cable, Baseplate, and Riser (for Flat Table)	5406655-2	4535-303-0517*
3.0T HD 8-Channel Wrist Array Coil with Cable (for Curved Table)	5268024-2	9896-031-1019* Note: Same as 4535-302-1916*, but packaged as a FRU.
3.0T HD 8-Channel Wrist Array Cable	5268024-3	9896-031-1020*
8-Channel Wrist Array Baseplate with Baseplate Riser (for Curved Table)	5160986-12	870312 Note: Same as 4535-302-3729*, but packaged as a FRU.
3.0T 8-Channel Wrist Array Baseplate with Baseplate Riser (for Flat Table)	5406395-12	4535-303-0471*
1.5T HD 8-Channel Wrist Array Phantom (Legacy)	5160986-5	870313 Note: Same as 110377, but packaged as a FRU.
Cubical Unified Phantom	5342681	--
3.0T HD 8-Channel Wrist Array Spare Kit	5406395-4	4535-303-0328*
3.0T HD 8-Channel Wrist Array Pad Kit (includes wrist pad, base pad, finger pad, palm pad, upper pad, and elbow pad) The pads are blue. Pads are customer-consumable components, and not intended to be covered by any GE service contract. Bill the customer for replacement pads.	5406395-3	4535-303-0329*
* The part revision number appears as the last digit of the Invivo part number and replaces the asterisk (*).

Topic ID: id_SL3175964-1064634

The following table lists replaceable accessories that can be purchased from Invivo. These pads are gray.

Topic ID: id_SL2081906-1064634

Topic ID: id_SL2081829-1064634

Notice

Replacement procedures are to be performed by authorized Service Engineers only.

Topic ID: id_SL2081911-1064634

Topic ID: id_SL2081913-1064634

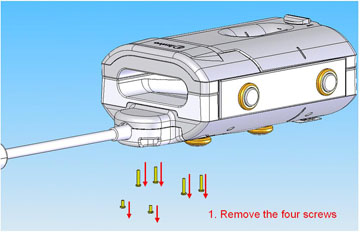

The four coil connector mounting screws are located at the end of the coil. Remove the four screws.
Figure 1. Remove Mounting Screws

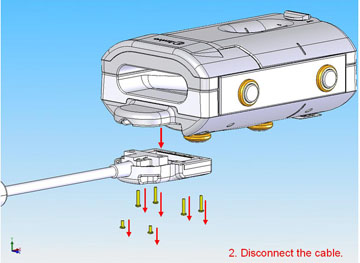

Remove the coil connector by pulling the coil connector housing away from the coil in the inferior direction.
Figure 2. Disconnect Cable

Topic ID: id_SL4174969-1064634

CAUTION

Possible Electrostatic Damage

Removing the coil cable and top cover exposes ESD-sensitive components.

Use all applicable ESD prevention procedures (including a ESD grounding wrist strap) when handling the coil.

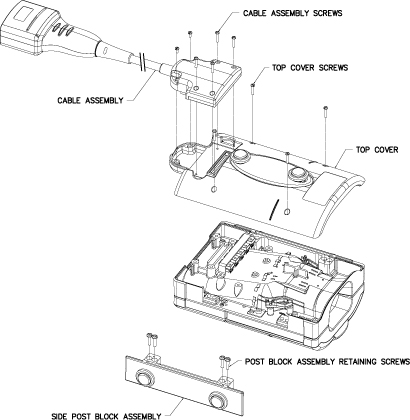

Remove the six cable assembly screws and the cable assembly, then remove the four cover screws and the top cover.
Figure 3. Cable and Cover Removal

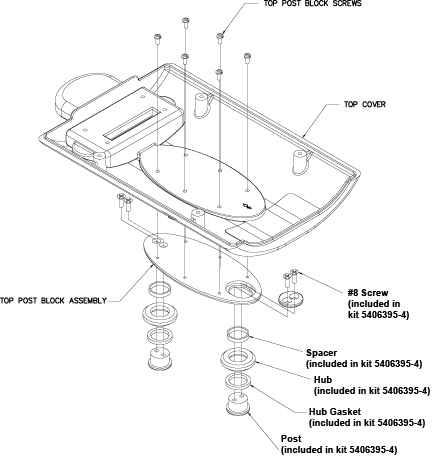

Turn the top cover over and remove the six top post block screws, then remove the top post block assembly. Replace the parts as needed.
Figure 4. Top Post Block Disassembly

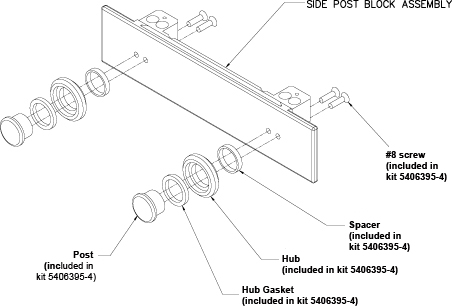

Remove the four side post block assembly screws Figure 3. Replace the parts as needed.
Figure 5. Top Post Block Disassembly
Reassemble the coil using the steps above.

Topic ID: id_SL2081916-1064634

Exercise the locking mechanism on the top of the coil housing by moving the latch handle back and forth to unlock/lock the coil. The lock must not loosen or unlock during the course of an examination.

(For curved table) Refer to 3.0T HD 8-Channel Wrist Array Coil Operator Manual, 5268024-4, Locking the Coil.

(For flat table) Refer to 3.0T HD 8–Channel Wrist Array Coil Operator Manual, Locking the Coil (Invivo part number 4535-303-0503).
Place the baseplate riser onto the baseplate aligned with the knob location and slide the baseplate riser into the locked position.

(For curved table) Refer to 3.0T HD 8-Channel Wrist Array Coil Operator Manual, 5268024-4, Patient Positioning.

(For flat table) Refer to 3.0T HD 8–Channel Wrist Array Coil Operator ManualPatient Positioning (Invivo part number 4535-303-0503).
